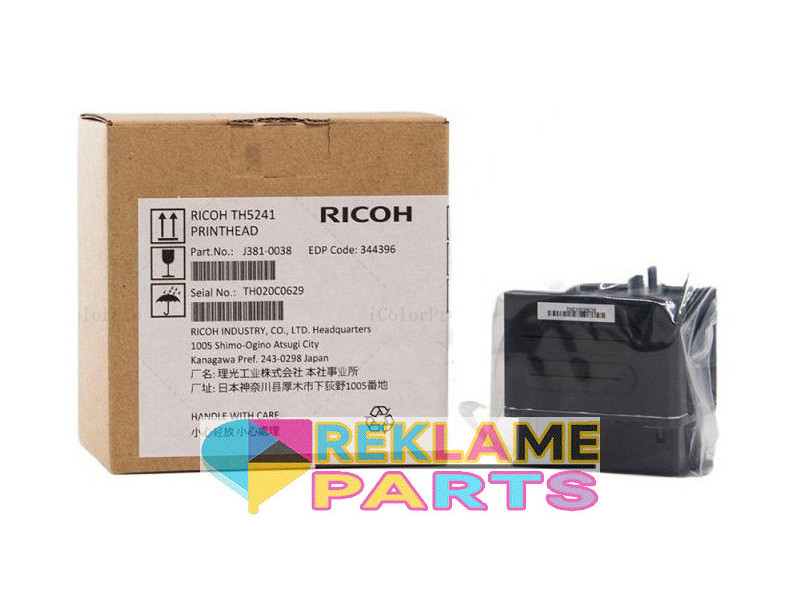

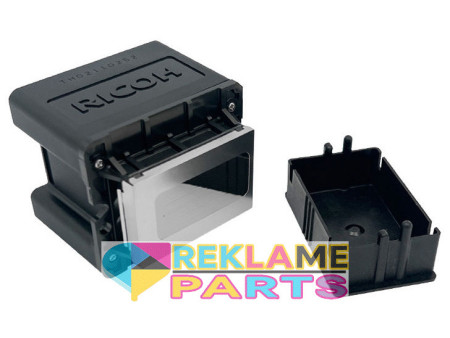

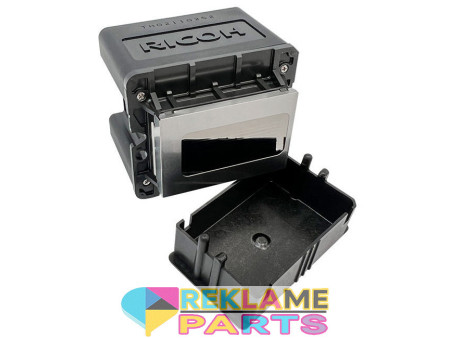

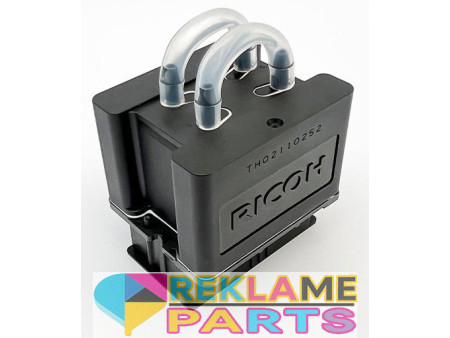

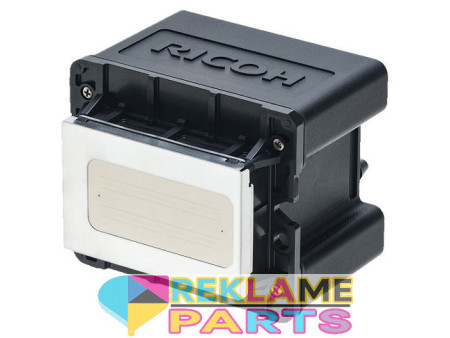

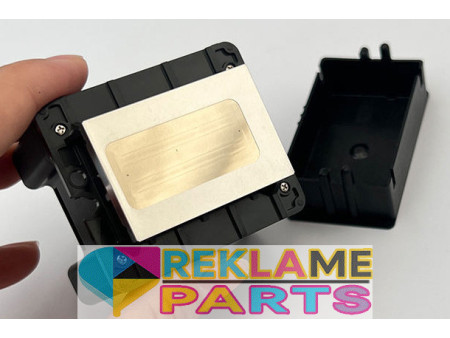

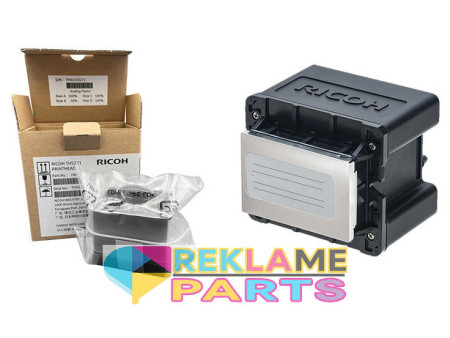

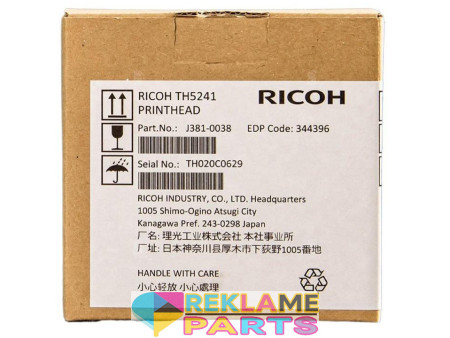

Original New Ricoh TH5241 Gen5i Print Head 3.5PL for UV Flatbed Printer

RICOH TH5241 Gen5i Printhead for Original Ricoh Gen5i Printhead 3.5PL Head Ricoh Gen5i Print Head for Sale
New and Original RICOH TH5241 Ricoh Gen5i Printhead for UV Flatbed Printer G5i Print Head Gen5i UV Printhead
Ricoh G5i Printhead TH5241
Original New Ricoh TH5241 Gen5i Print Head 3.5PL for UV Flatbed Printer


This RICOH TH5241 printhead is compatible with UV, Solvent and Aqueous based inks.
SKU: PPHRI18186
Manufacturer part number: TH5241
Manufacturer: Ricoh
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan


This RICOH TH5241 printhead is compatible with UV, Solvent and Aqueous based inks.
With 1,280 nozzles configured in 4 x 320 nozzle rows, this head achieves high-resolution 600dpi printing.
This inkjet printhead can be used for various applications.

Specifications

Method: thin-film piezoelectric transducer with bend mode
Print Width: 27.1 mm (1.06")
Total printhead dimensions: 52.7 x 45.8 x 55.4 mm
Number of nozzles: 1,280 (4 x 320 channels), staggered
Nozzle Resolution: 600npi(2 colors, 1 color)　300npi(4 colors)
Nozzle spacing: A : 2.286mm B : 6.095mm
Compatible ink: UV, Solvent, Aqueous.
Weight: 63g
Max. number of color inks: 4 colors
Temperature control: Integrated thermistor, without heater.
Operator temperature range: 40° C
Firing frequency: 40kHz (2 levels); 24kHz (4 levels)
Grey-scale: 4 levels
Drop volume: 3pl (Single drop); 3～12pl (max 21pl) (Multi drop)　
Viscosity range: 7ｍPa・s
Surface tension: 27±5mN/m

We recommend to change the head cables when installing a new printhead.

Compatibility:
Focus Atlas-1311 UV
Mtutech 360 Rotary UV
