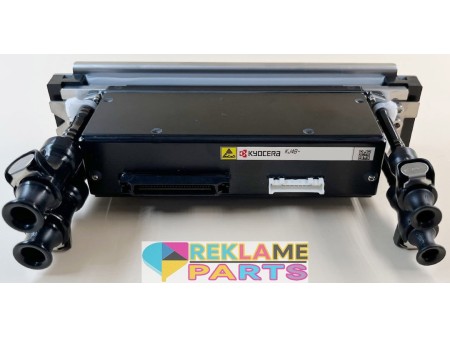

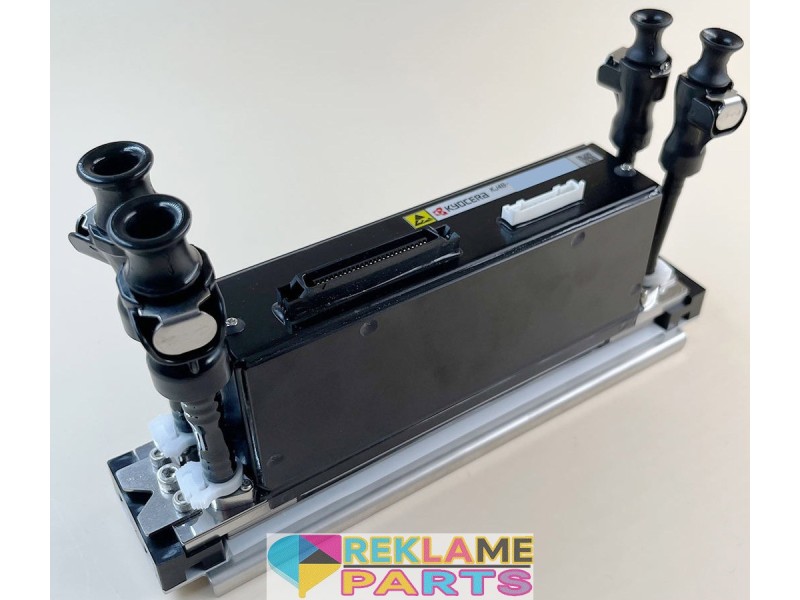

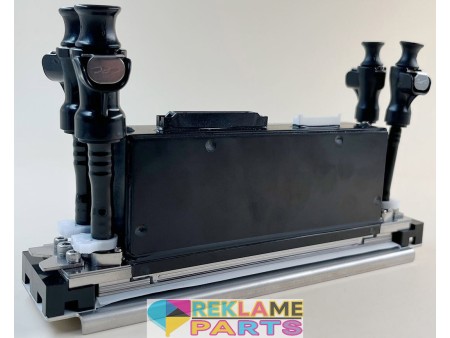

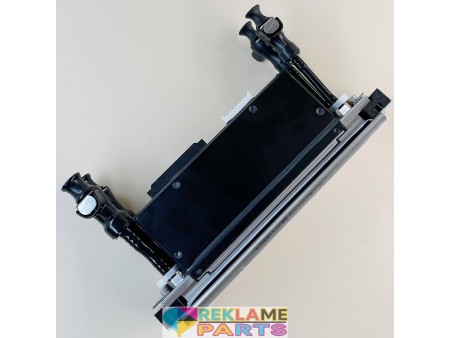

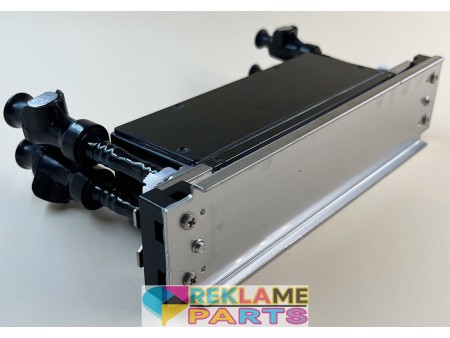

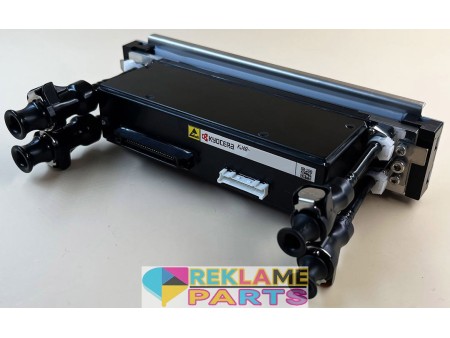

Original Kyocera KJ4B-0300-R06DS-HG2 Printhead

$1,985.00

Kyocera KJ4B-0300-R06DS-HG2 Printhead

Specifications:
Model: Kyocera KJ4B-0300-R06DS-HG2
Resolution: 300 dpi (two-color configuration)
Number of Nozzles: 2,656 per channel (5,312 total)
Effective Print Width: 108.25 mm (4.25 inches)
Nozzle Pitch: 0.0847 mm (optimized for 300 dpi)
Maximum Drive Frequency: 30 kHz
Drop Volume: ~5–7 pL (depending on ink and settings)
Ink Type: Aqueous inks (water-based, dye or pigment formulations)
Print Speed: Up to 75–100 m/min depending on resolution and ink type
Jetting Rate: 30,000 drops per second per nozzle
Dimensions: Approx. 200 × 25 × 57.9 mm
Weight: ~500 g
Country of Origin: Japan

Quantity

Kyocera KJ4B-0300-R06DS-HG2 Printhead

Specifications:
Model: Kyocera KJ4B-0300-R06DS-HG2
Resolution: 300 dpi (two-color configuration)
Number of Nozzles: 2,656 per channel (5,312 total)
Effective Print Width: 108.25 mm (4.25 inches)
Nozzle Pitch: 0.0847 mm (optimized for 300 dpi)
Maximum Drive Frequency: 30 kHz
Drop Volume: ~5–7 pL (depending on ink and settings)
Ink Type: Aqueous inks (water-based, dye or pigment formulations)
Print Speed: Up to 75–100 m/min depending on resolution and ink type
Jetting Rate: 30,000 drops per second per nozzle
Dimensions: Approx. 200 × 25 × 57.9 mm
Weight: ~500 g
Country of Origin: Japan


Features
Dual-Color Capability: Supports two-color printing in one head, reducing the number of heads required.
High-Speed Printing: Designed for single-pass applications with aqueous inks.
Industrial Durability: Built for continuous operation in textile, packaging, and commercial printing environments.
Precision: 300 dpi resolution optimized for high-speed production while maintaining image clarity.



Compatible Printers:
Textile printers (e.g., MS, Reggiani, Atexco)
Commercial aqueous inkjet systems (transaction printing, documents)
Packaging and label printers using water-based inks
OEM custom-built inkjet machines requiring dual-color, high-speed heads

KJ4B-0300-R06DS-HG2
12 Items

Specific References

MPN
KJ4B-0300-R06DS-HG2
