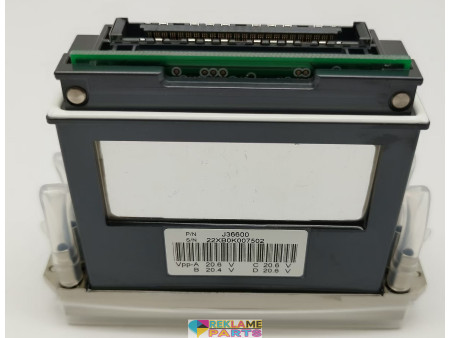

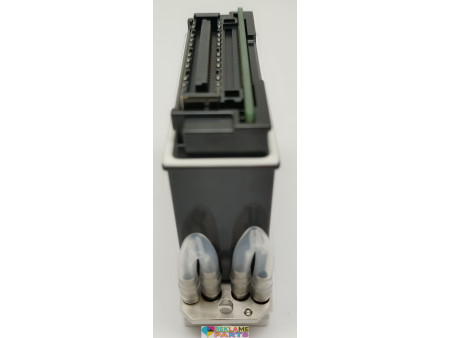

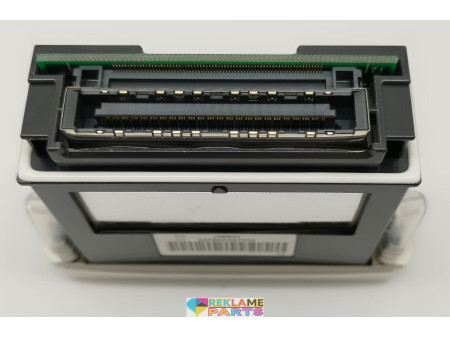

Brand New Ricoh G5F MH5421MF J36600 Uv Print Head Printhead

Ricoh GEN5 MH5421MF J36600 Printhead
Brand New Ricoh G5F MH5421MF J36600 Uv Print Head Printhead


This Ricoh printhead offers high-resolution printing and support for multiple ink colours with multi-row nozzles, as well as enhanced aqueous ink compatibility with new bonding technology.
SKU: PPHRI18048
Manufacturer part number: MH5421MF
Manufacturer: Ricoh
Dimensions: 89 x 25 x 69 mm (excluding cables)
Weight: 155g
This printhead carries a manufacturer warranty.
Country of origin : Japan



This MH5421MF Ricoh printhead offers high-resolution printing and support for multiple ink colors with multi-row nozzles, as well as enhanced aqueous ink compatibility with new bonding technology. We recommend to change the head cables when installing a new printhead.

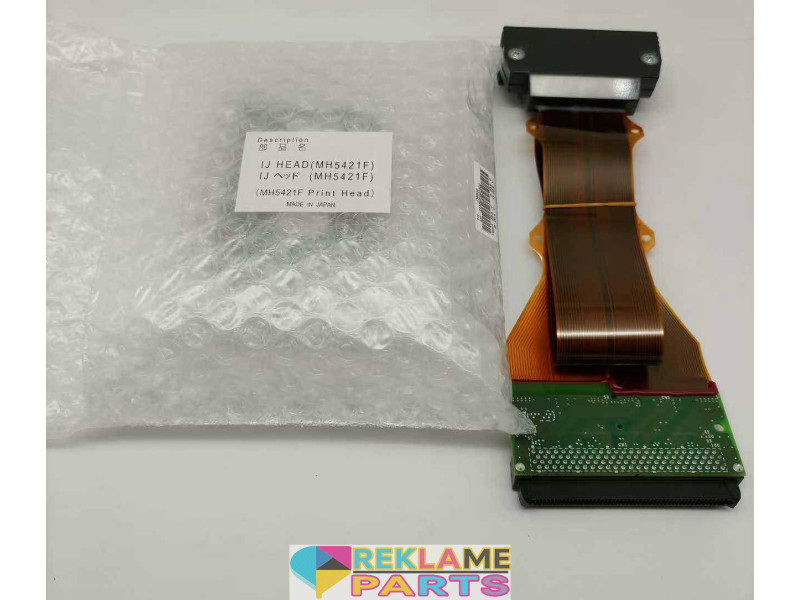

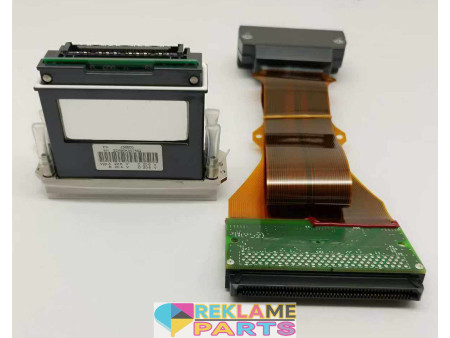

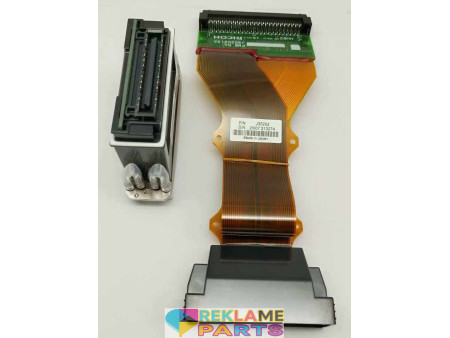

The head comes with a 447mm cable. the total length of head and cable is 500mm. The head ribbon cable is also available individually.

Specifications

Max. number of color inks: 2 colors
Print width: 54.1mm
Compatible ink: aquaeous ink
Nozzle spacing: 1/150" (0.1693mm)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles (1280)
Nozzle spacing: 0.1693 mm
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 50° C
Drop volume: 7/14/21 pl (depending on the ink)
Jetting frequency: 30 kHZ
Viscosity range: 6mPa . s
Gray-scale: 4 levels (depending on the ink characteristics)
Total length: 248mm (cable length: 179mm)
