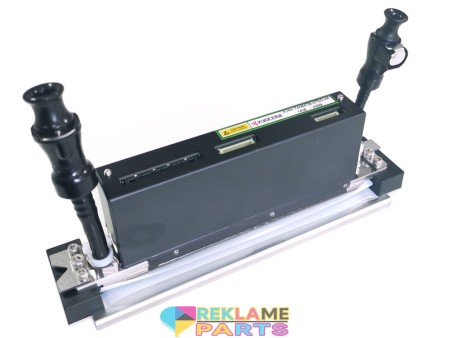

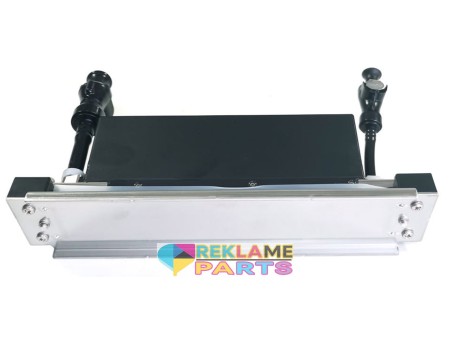

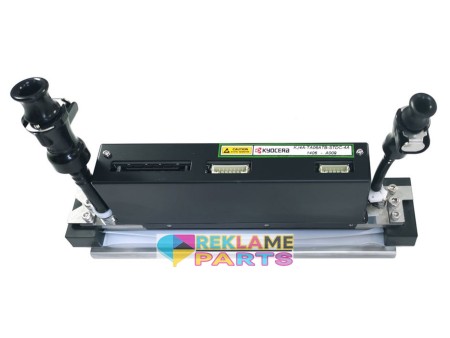

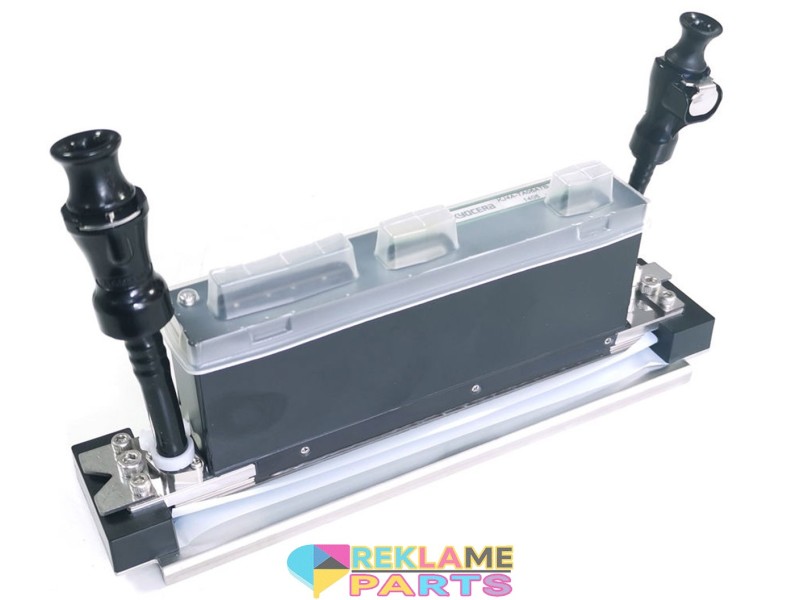

Kyocera KJ4A-TA06ATB-AM1V-4B Printhead for Solvent Printer
Technical Specifications:
Model: Kyocera KJ4A-TA06ATB-AM1V-4B
Resolution: 600 dpi (single color)
Number of Nozzles: 2,656
Effective Print Width: 108.25 mm
Nozzle Pitch: 0.042 mm
Maximum Drive Frequency: 20 kHz
Drop Volume: ~6 pL
Ink Type: UV-curable inks and other high-viscosity inks
Print Speed: Up to 50 m/min at 600 dpi
Jetting Rate: 30,000 drops per second
Dimensions: 200 × 25 × 57.9 mm
Weight: ~500 g
Country of Origin: Japan
Kyocera KJ4A-TA06ATB-AM1V-4B Printhead for Solvent Printer
Technical Specifications:
Model: Kyocera KJ4A-TA06ATB-AM1V-4B
Resolution: 600 dpi (single color)
Number of Nozzles: 2,656
Effective Print Width: 108.25 mm
Nozzle Pitch: 0.042 mm
Maximum Drive Frequency: 20 kHz
Drop Volume: ~6 pL
Ink Type: UV-curable inks and other high-viscosity inks
Print Speed: Up to 50 m/min at 600 dpi
Jetting Rate: 30,000 drops per second
Dimensions: 200 × 25 × 57.9 mm
Weight: ~500 g
Country of Origin: Japan
Features
High Precision: 600 dpi resolution with fine nozzle pitch for sharp detail.
Industrial Durability: Built for continuous operation in demanding environments.
Ink Compatibility: UV-curable and high-viscosity inks, suitable for non-porous substrates.
Applications: Label printing, packaging, sign graphics, offset surprint, and other industrial UV printing tasks.
Compatible Printers:
Industrial UV inkjet printers (single-pass and multi-pass)
Flatbed UV printers for rigid substrates (plastic, glass, wood, metal, coated paper)
Roll-to-roll UV printers for flexible packaging and labels
