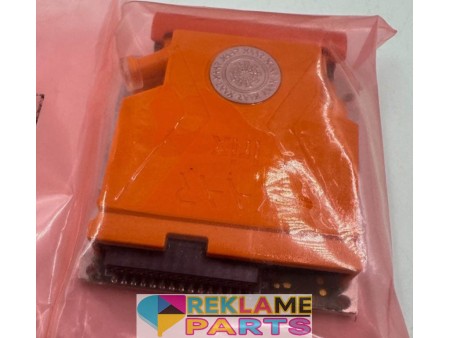

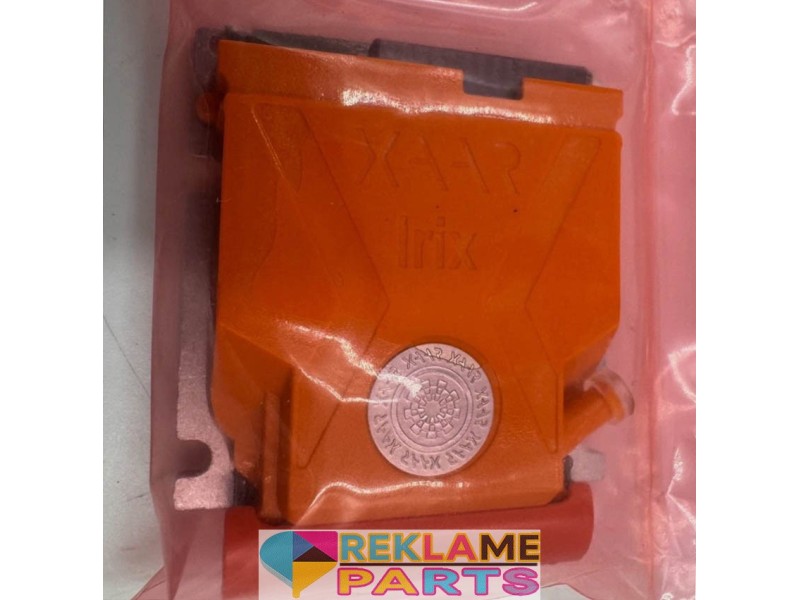

Original Xaar Irix Core 40W Printhead - XP12800072 For DGI XP-2506SX

The Xaar Irix Core 40W printhead with a light grey insulator is suitable for a wide range of oil, solvent and water based ink systems. This printhead serves as a direct replacement for the discontinued Xaar XP12800007 and XP12800009 heads, and can be used instead of can be used instead of XP12800074, offering identical performance, quality and printer compatibility. No firmware changes are required in the printer software either. The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.


Specifications
☑️ Active nozzles: 128
☑️ Nozzle density (NPI): 185
☑️ Print swathe (mm): 17
☑️ Dimensions (mm): 37.2 x 11.3 x 40.8
☑️ Mass (g): 15.5
☑️ Colour of insulator: Light grey
☑️ Drop size (pL): 40
☑️ Drop velocity (m/s): 6
☑️ Max frequency (kHz): 8.3
☑️ Linear speed (m/s @ 180 DPI): 1.17
☑️ Print distance (mm): <5
☑️ Max angular deviation (degrees): 1.0
☑️ Drop velocity variation 3σ (m/s): +/- 0.50


Printer compatibility :
✅ Aestrik Inwear S3316XL
✅ DGI XP-2506D
✅ DGI XP-2506SX
✅ DGS Color Xpress CX-2504S
✅ DGS Color Xpress CX-3212S
✅ Gongzheng GZC-3212DP
✅ Gongzheng GZC-3216DP
✅ Gongzheng GZC-3312
✅ Gongzheng GZC-3316
✅ Gongzheng GZY-3208DP
✅ Gongzheng GZY-3212DP
✅ Sun Innovations Neo Katran
✅ Wit-Color 3320T
✅ Wit-Color Ultra 720
✅ Wit-Color Ultra 860+ 3312
✅ Wit-Color Ultra 860+ 3316
