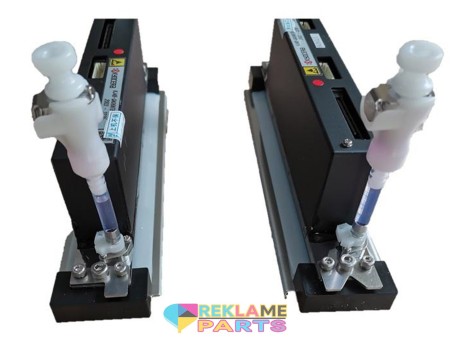

Kyocera KJ4B-QA06NTB-ST6V-4B PrintHead
The Kyocera KJ4B-QA06NTB-ST6V printhead is a high-resolution industrial inkjet head designed for aqueous inks, offering 600 dpi resolution, 30 kHz drive frequency, and speeds up to 75 m/min. It features 2,656 nozzles across a 108.25 mm swathe, with 5 picoliter droplet size for precise, high-speed printing.
Specifications :
Brand: Kyocera
Model: KJ4B-QA06NTB-ST6V
Ink Type: Aqueous (water-based) ink
Native Resolution: 600 × 600 dpi
Maximum Drive Frequency: 30 kHz
Kyocera KJ4B-QA06NTB-ST6V-4B PrintHead
The Kyocera KJ4B-QA06NTB-ST6V printhead is a high-resolution industrial inkjet head designed for aqueous inks, offering 600 dpi resolution, 30 kHz drive frequency, and speeds up to 75 m/min. It features 2,656 nozzles across a 108.25 mm swathe, with 5 picoliter droplet size for precise, high-speed printing.
Specifications :
Brand: Kyocera
Model: KJ4B-QA06NTB-ST6V
Ink Type: Aqueous (water-based) ink
Native Resolution: 600 × 600 dpi
Maximum Drive Frequency: 30 kHz
Printing Speed: Up to 75 meters per minute
Drop Volume: 5 picoliters
Nozzles: 2,656
Effective Print Width: 108.25 mm
Dimensions: 200 × 25 × 59.3 mm
Dry Weight: 420 g
Resolution 600 dpi
Drive Frequency 30 kHz
Print Speed 75 m/min
Drop Volume 5 pl
Nozzles 2,656
Effective Print Width 108.25 mm
Dimensions 200 × 25 × 59.3 mm
Weight 420 g
Ink Type Aqueous
Design Features
Print Swathe: Wide coverage for industrial-scale printing
Precision: Fine droplet size ensures sharp image clarity
Durability: OEM-grade, designed for continuous operation
Reliability & Quality
Consistency: Stable droplet placement for uniform print quality
Compatibility: Works with Kyocera’s industrial inkjet systems
Maintenance: Requires proper cleaning to avoid nozzle clogging
