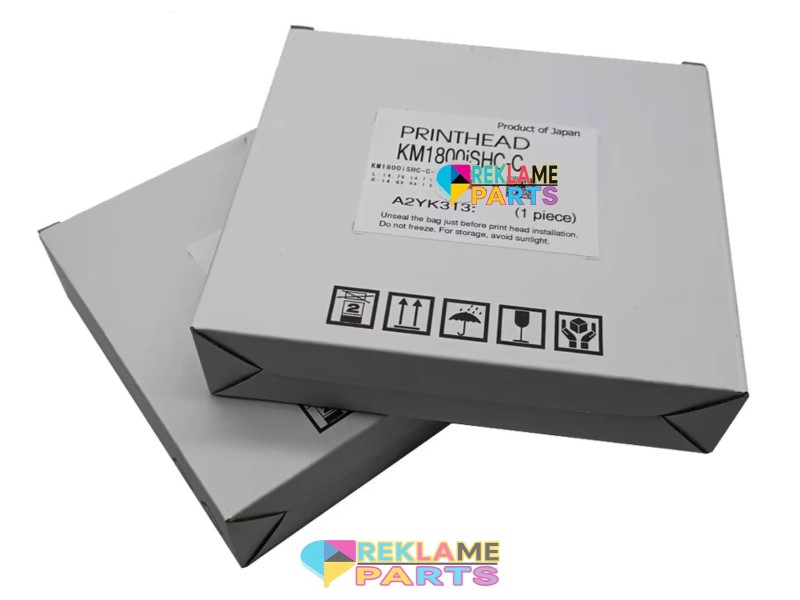

Original Konica KM1800i SHC-C Printhead

Original Konica KM1800i SHC-C Printhead


This Konica KM1800i SHC printhead offers 600 dpi resolution and is compatible with UV, solvent and water-based inks.
Konica KM1800i SHC printhead is a fast and reliable solution for applications requiring high quality such as Coding and marking, Packaging applications, Plastic card decoration, Security applications, Printed electronics.



Specifications:

• SKU: PPHKM1800I
• HTS Code: [EU] 84439990
• Manufacturer part number: REVO-H
• Manufacturer: Konica Minolta
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
• Available ink types: UV, Solvent, Water-based
• Technology: Independent channel, on-demand piezo
• Number of nozzles: 1776 (296 x 6 rows)
• Channel resolution: 42.3μm pitch (600 dpi: 6 rows x 100 dpi)
• Grey scale: 8 levels
• Typical frequency: 80kHz
• Drive voltage: 18 +/- 3V
• Printing width: 75.14 mm
• Overall row spacing: 4.74 mm
• Drop velocity: 6.0 m/sec
• Dimensions: Height 106.82 mm x Width 19.8 mm x Length 137.4 mm
• Weight Less than 205 gm
• Drop size: 3.5pl
• Max frequency: 84kHz

We recommend to change the head cables when installing a new printhead.

The KM1800i SHC-C is widely used in industrial UV printers and hybrid printers. It is compatible with:
• Agfa Anapurna series (e.g., M-series, H-series)
• Allwin UVT and S-series
• Docan UV flatbeds
• Flora UV printers
• JHF Vista series (R3300, R6000, V300UV, V500UV)
• Skyjet FT-series
• Taimes UV printers
• Yicong UV printers
• Other high-speed industrial systems requiring fine resolution and multi-ink support
