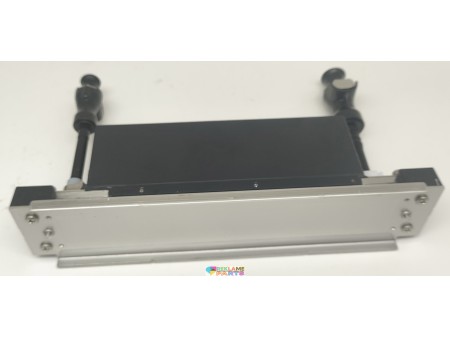

Original Kyocera KJ4A-AA06ATZ-DL1V-4A Printhead for Dilli NEO SUN HB 2504D-W2XL

Original Kyocera KJ4A-AA06ATZ-DL1V-4A Printhead
Kyocera KJ4A-AA06ATZ UV Ink Printing Head Printhead Textile Printing Machine


Brand: Kyocera
Model: KJ4A-AA06ATZ-DL1V-4A
Ink Type: UV ink
Dimensions: 200 × 25 × 57.9mm
Original or Not: Original
New or Used: Brand New
Warranty Policy: No Warranty
Country of origin: Japan


The Kyocera KJ4A-AA06ATZ-DL1V-4A is an advanced UV-compatible industrial printhead engineered for high-precision and wide-format inkjet printing. With its 108 mm print width, a small number of printheads can easily achieve wide-format coverage, minimizing alignment complexity and simplifying ink piping and wiring layouts.

Operating at a maximum drive frequency of 20 kHz, this printhead delivers exceptional image sharpness and consistency with a 3 picoliter drop size at speeds up to 50 m/min. It is suitable for a broad range of industrial printing applications, including labels, packaging, signage, and graphics, particularly those requiring UV-curable or other high-viscosity inks.

The integrated microfilter system effectively removes impurities from the ink, while the built-in heater stabilizes temperature-related viscosity changes, ensuring smooth and uniform jetting. With 2,656 precision-aligned nozzles and Kyocera’s unique ink channel design, the KJ4A-AA06ATZ-DL1V-4A provides reliable, consistent ink ejection and reduces non-jetting during extended production runs.



Printhead Specifications

Number of Nozzles: 2656 (2558)
Effective Print Width (mm): 108.25
Ink: UV
Maximum Drive Frequency (kHz): 20
Resolution (dpi): 600 dpi * 600 dpi
Print Speed *1 (m/min): 50.8
Print Speed*1 (pl):
   Minimum: 3
   Maximum: 17
Nozzle Recirculation: No
Width*Length*Height (mm): 200*25*57.9
Recommended Ink Viscosity*2 (mPa * s); 6.0~7.0



Printer Compatibility:

NEO SUN HB 2504 D-DXL
Dilli NEO SUN FB2513-04 D-WX
Dilli NEO SUN HB 2504D-W2XL
