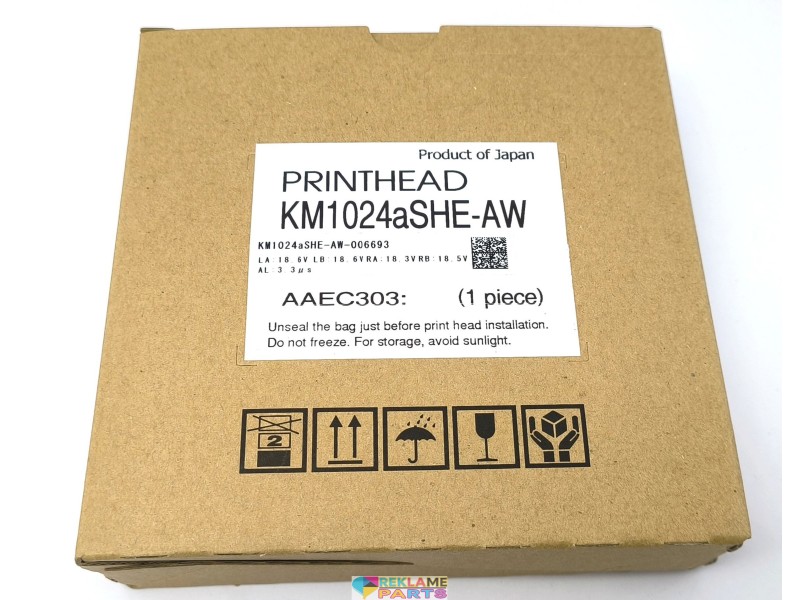

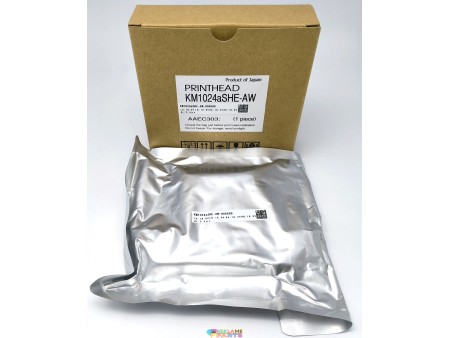

Original Konica Minolta KM 1024a SHE-AW Printhead

Original Konica Minolta KM 1024a SHE-AW Printhead

High Productivity, Large Droplet Print Head Featuring Unique Nozzle Recirculation System.


Specifications:

• SKU: KM1024A SHE
• HTS Code: [EU] 84439990
• Manufacturer part number: KM1024A SHE
• Manufacturer: Konica Minolta
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
• Technology: Piezoelectric, shear mode inkjet
• Resolution: 360 dpi (arranged across 1024 nozzles)
• Print width: 72 mm (double the KM512 series, enabling higher density and wider coverage)
• Droplet sizes:
    6 pl at 40 kHz
    20 pl at 22 kHz
• Supports multi-drop continuous injection for richer grayscale levels
• Grayscale capability: Up to 8 different droplet sizes for smooth tonal reproduction
• Ink compatibility: Solvent, UV, oil-based, and water-based inks
• Chemical resistance: Enhanced resistance for various inks, including water-based (SAE-Q variant)
• Casing dimensions: Compact 17.6 mm height, lightweight at 150 g
• Design benefits:
    Reduced mechanical load for printer integration
    Backward mechanical compatibility with KM1024i series (no redesign required)
• Reliability: Proven durability in industrial applications, extended to water-based inks

We recommend to change the head cables when installing a new printhead.


Key Advantages:
✅ High productivity for one-way commercial printers
✅ Smooth grayscale reproduction for high-definition images
✅ Flexibility with multiple ink types
✅ Compact and lightweight design for easy integration



Compatibility:

✅ Agfa Anapurna series (M-series, H-series)
✅ Allwin UVT and S-series
✅ Docan UV flatbeds
✅ Flora UV printers
✅ JHF Vista series (R3300, R6000, V300UV, V500UV)
✅ Skyjet FT-series
✅ Taimes UV printers
✅ Yicong UV printers
