Original Kyocera KJ4A-RH06CST-STDC Printhead for DPI Hawk M6

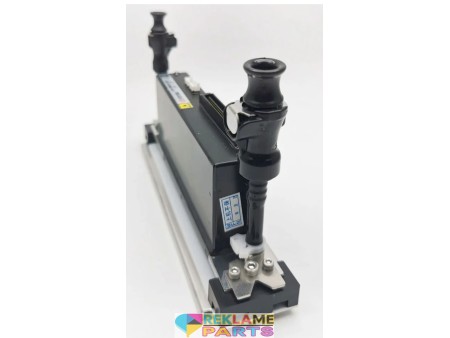

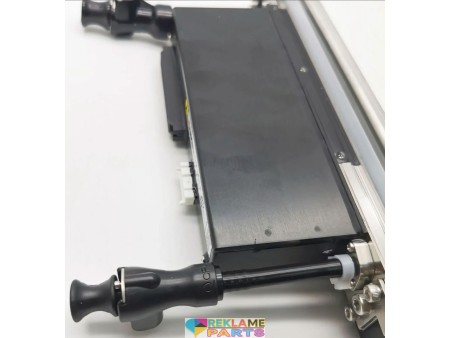

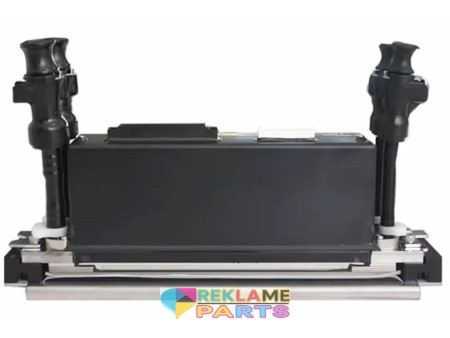

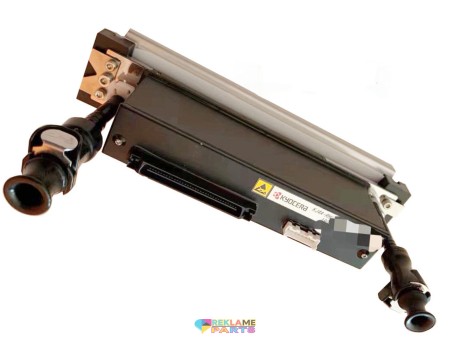

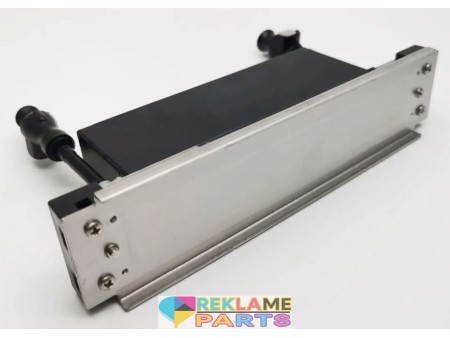

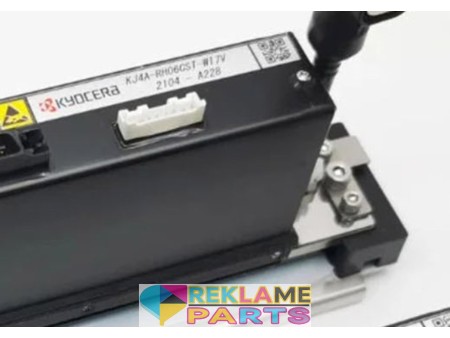

Original Kyocera KJ4A-RH06CST-STDC Printhead

SKU: PPHKY87212
Manufacturer part number: KJ4A-RH06CST-STDC
Manufacturer: Kyocera
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin: Japan
Product Name  : Kyocera KJ4A-RH06CST-STDC Printhead
Condition : original
Brand: Kyocera
Ink Type:  UV Ink
Model: KJ4A-RH06CST-STDC
Dimensions: 200 × 30.5 × 69.1mm
Single gross weight : 1.000 kg



Kyocera KJ4A-RH is designed for high-speed single-pass and multi-pass applications with printers using UV ink. This 600 dpi single-color printhead has 2,656 nozzles, arranged across a 108 mm wide print swathe with 0.042 mm pitch, resulting in 30.000 drops per second. The Kyocera KJ4A printhead features a maximum drive frequency of 30 kHz, achieving a small drop volume of 5 pl at 70 m/min.

With the built-in filter’s help, foreign products are removed; the built-in heater corrects the influence of ambient temperature changes. The unique ink supply design ensures stable jetting of 2656 nozzles and reduces non-jetting during continuous printing.


Kyocera KJ4A-RH Printhead Specifications

Number of Nozzles: 2656 (2558)
Effective Print Width (mm): 108.25
Ink: UV
Maximum Drive Frequency (kHz): 30
Resolution (dpi):  600 dpi * 600 dpi
Print Speed *1 (m/min):    76.2

Print Speed*1 (pl)
  Minimum    3
  Maximum    14

Nozzle Recirculation: No
Width*Length*Height (mm): 200*30.5*69.1
Recommended Ink Viscosity*2 (mPa * s):    5.0~6.0


Compatibility:

DPI M7
DPI Hawk M6
Gandy Digital Gladi8tor
Gemini 108C
Gemini 214C
Jetsci Kolorsmart +
