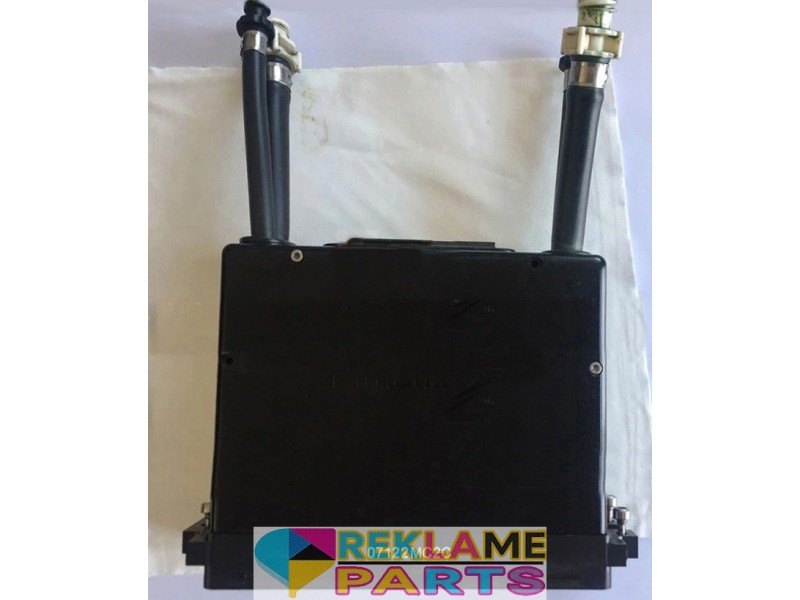

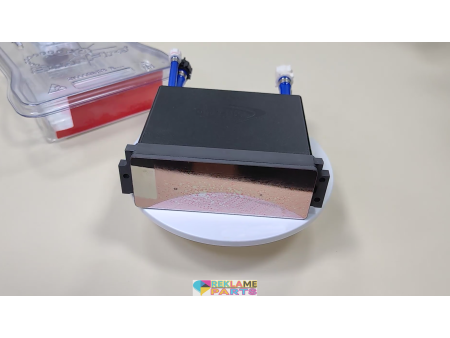

Dimatix StarFire SG1024MC2C 12pl Printhead
zoom_in
  • On sale!
  • Dimatix StarFire SG1024MC2C 12pl Printhead
  • Dimatix StarFire SG1024MC2C 12pl Printhead
  • Dimatix StarFire SG1024MC2C 12pl Printhead
  • Dimatix StarFire SG1024MC2C 12pl Printhead
  • Dimatix StarFire SG1024MC2C 12pl Printhead

Dimatix StarFire SG1024MC2C 12pl Printhead

$1,495.00

Spectra Dimatix StarFire SG1024/MC2C Printhead

Dimatix StarFire SG1024MC2C 12pl Printhead

The StarFire™ SG1024/MC2C is a compact, self-contained unit compatible with solvent, UV-curable and aqueous ink formulations.

SKU: SG1024/MC2C

Manufacturer part number: SG1024/MC2C

Manufacturer: Dimatix

HTS Code: [EU] 84439990

This printhead carries a manufacturer warranty.

Country of origin : Japan

Quantity

Spectra Dimatix StarFire SG1024/MC2C Printhead

Dimatix StarFire SG1024MC2C 12pl Printhead

The StarFire™ SG1024/MC2C is a compact, self-contained unit compatible with solvent, UV-curable and aqueous ink formulations.

SKU: SG1024/MC2C

Manufacturer part number: SG1024/MC2C

Manufacturer: Dimatix

HTS Code: [EU] 84439990

This printhead carries a manufacturer warranty.

Country of origin : Japan

Specifications

Attribute Specification

Number of Addressable Jets 1024

Color Operation Two-color

Native Resolution Up to 400 dpi in single-color mode (200 dpi per color in 2-color mode)

Print Width 64.96 mm [2.55 in.]

Nozzle Spacing 0.0635 mm [0.0025 in.]

Drop Size Range 26 to 65 picoliters (adjustable range for solvent/oil-based ceramic inks)

Max Firing Frequency Up to 50 kHz (for 26 pL droplets)

Compatible Fluids Oil-based ceramic and solvent-based inks

Ink Operating Temperature Up to 50°C [122°F]

Nominal Fluid Viscosity 8 - 20 cP (10 - 14 cP recommended)

Weight Approximately 320 grams [0.75 lbs.]
