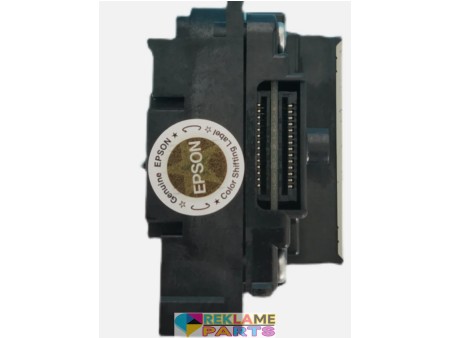

Genuine Epson I3200-U1 UV Printhead

Original I3200 Printhead U1 Nozzle Print Head For Epson I3200-U1

The Epson I3200-U1 UV  is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked. We recommend to change the head cables when installing a new printhead. It is aslo known as I3200-S1 HD.


Product Specifications:

🟩 SKU: I3200-U1
🟩 Manufacturer part number: I3200-U1
🟩 Manufacturer: EPSON
🟩 HTS Code: [EU] 84439990
🟩 Country of origin : Japan
🟩 This printhead carries a manufacturer warranty.
🟩 Ink Type : UV
🟩 Type : PrecisionCore MicroTFP printhead
🟩 Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
🟩 Weight : 82g
🟩 Number of nozzle : 3200
🟩 Nozzle pitch/nozzle row : 1/300 inch
🟩 Nozzle rows: 8 rows
🟩 Nozzle Resolution : 300 noi/row 600 npi/2 rows
🟩 Max. number of colour inks : 4 colours
🟩 Effective print width : 33.8 mm (1.33 inches)
🟩 Droplet ejection performance :
🟩 Binary : 5 plat 43.2 kHz
🟩 3 levels grey scale : 6, 12.5 pl at 21.6 kHz
🟩 4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz
🟩 Viscosity range : 5-7 mPa·s



Printer compatibility :

✅ Audley ADL6003UV
✅ Nocai NC-Cyclone-400
✅ Nocai NC-UV0609MAX
✅ Signstar BT-1804UN
✅ Signstar UV-6090
✅ Signstar UX-1802
✅ Sinocolor FB-0906D
✅ Sinocolor FB-2513S
✅ Sinocolor HUV-2000S
✅ Sinocolor HUV-2600S
✅ Sinocolor HUV-3200S
✅ Sinocolor UE-2000D
✅ Sinocolor UR-2000S
✅ Sinocolor UR-3200S
✅ Sinocolor UR-5000S
✅ Sinocolor UV-1260S
✅ Sinocolor UV-740S
✅ Textek UV-F604
