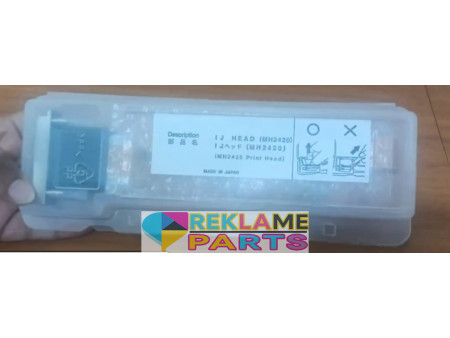

Original New Ricoh MH2420 GEN4 7-35PL Printhead - N220792J for DYSS Apollo GF2616-10FRW

$536.00

Original New Ricoh MH2420 GEN4 7-35PL Printhead - N220792J

The Ricoh GEN4 MH2420 printhead is suitable for a range of aqueous, solvent and UV printers.
SKU: PPHRI12661
Manufacturer part number: N220792J
Manufacturer: Ricoh
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan

Quantity

Original New Ricoh MH2420 GEN4 7-35PL Printhead - N220792J

The Ricoh GEN4 MH2420 printhead is suitable for a range of aqueous, solvent and UV printers.
SKU: PPHRI12661
Manufacturer part number: N220792J
Manufacturer: Ricoh
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan


The Ricoh GEN4 MH2420 printhead is suitable for a range of aqueous, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. The cable is 44 cm long (including the connector). The version with short cable (N220792T) is discontinued but can be replaced by this identical head with a longer cable.
This printhead comes with hose barb ink inlet that can be removed in case o-ring sealed ink inlet are required. This printhead corresponds to Ricoh part numbers N220792W, N220792S, N220792U, N220792T or N220792E.
This printhead comes with the hose barbs which can easily be removed if needed.

Specifications

- Size: 63 x 62.4 x 16,2 mm (excluding cables)
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing within a row: 0,1693 mm
- Nozzle spacing row to row: 0.529 mm
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 60° C
- Drop Volume Range: Binary mode: 7pl / Grey-scale mode: 7-35 pl
- Jetting Frequency: Up to 30 kHZ
- Surface tension: 28-35nM/m
- Viscosity range: 10-12 mPas
- Grey scale: 4 levels
- Number of ink ports: 2 x dual
- Life: 100 billion actuations per nozzle

compatibility
Agfa Jeti 3020 Titan

Agfa Jeti Titan X
Anajet mPower
Anajet MPower MP10i
Anajet MPower MP5i

CET Color X-Press 500Q

Digitex Gunsjet SF-1914
Digitex Gunsjet SR-1808
Digitex Gunsjet SR-2508
Digitex Gunsjet SR-3208
Digitex Gunsjet UF4547

Durst Omega 1
Durst Omega 2

DYSS Apollo GF2616-08F
DYSS Apollo GF2616-10FFW
DYSS Apollo GF2616-10FRW
DYSS Apollo GF2616-12F
DYSS Apollo GF2616-12S
DYSS Apollo GF2616-14SFW
DYSS Apollo GF2616-14SRW
DYSS Apollo GF2616-16F
DYSS Apollo GF2616-16SFWFV
DYSS Apollo GF2616-16SRWRV
DYSS Apollo GH1600-08F
DYSS Apollo GH1600-08SF
DYSS Apollo GH1600-08SR
DYSS Apollo GH1600-10FM
DYSS Apollo GH1600-12S
DYSS Apollo GH1600-12SFWFV
DYSS Apollo GH2200-08F
DYSS Apollo GH2200-08SF
DYSS Apollo GH2200-08SR
DYSS Apollo GH2200-10FM
DYSS Apollo GH2200-12S
DYSS Apollo GH2200-16SFWFV
DYSS Apollo GH2600-08F
DYSS Apollo GH2600-08SF
DYSS Apollo GH2600-08SR
DYSS Apollo GH2600-10FM
DYSS Apollo GH2600-12S
DYSS Apollo GH2600-12SFWFV

Gandy Digital Domin8tor

Ricoh Ri 2000

tek-Ind alfa digital SD50x70-R4


Packaging & Delivery
✔ Package Size: 20.00cm * 10.00cm * 4.00cm
✔ Gross Weight: 0.550kg

Why Buy from Us?
✔ OEM Ricoh Printhead – 100% genuine and reliable replacement part.
✔ High-Speed Performance – 384 nozzles for industrial-grade precision.
✔ Versatile Ink Compatibility – Works with UV, solvent, and aqueous inks.
✔ Durable & Reliable – Designed for long-lasting, high-volume printing.
✔ Hose Barb Design – Ensures efficient and smooth ink supply.
✔ Competitive Pricing – Get premium Ricoh printheads at the best prices.
✔ Expert Customer Support – Our team is ready to assist with any questions.

Note to Customers
For more details about the Ricoh GEN4L 15PL Printhead (MH2420) or assistance with compatibility, feel free to reach out. We offer exclusive deals, expert advice, and top-tier customer support to help you maintain your printing system.
