Ricoh Gen5 MH5420 7PL-35PL UV Printhead (248mm, Two Color, Short Cable) N221414J

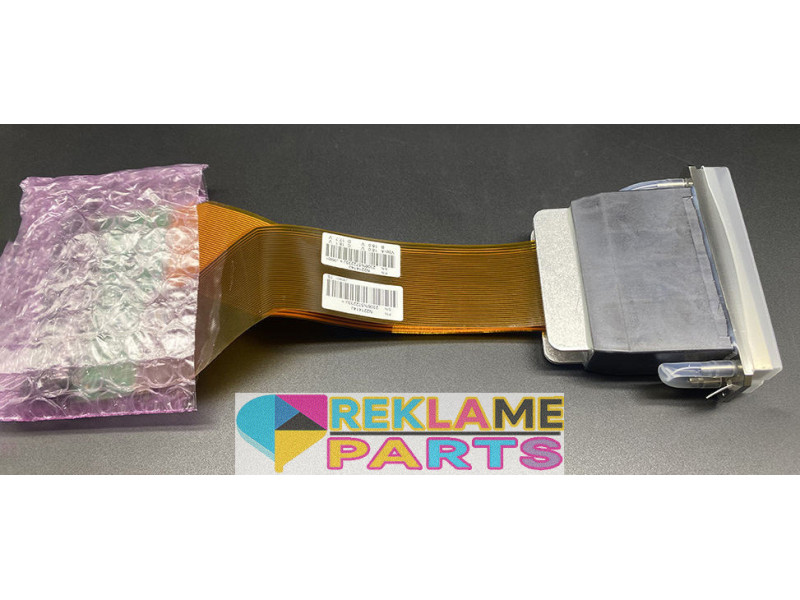

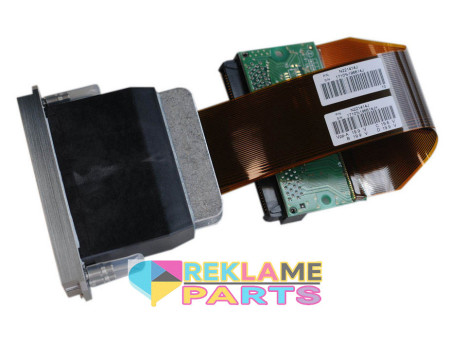

Original Ricoh MH5420 GEN5 UV Printhead (248mm) - N221414J
New Gen5 Print Head for Ricoh Gen 5 UV Printhead MH5420 248MM Cable N221414J Water-Based Solvent Ink
Ricoh Gen5 / 7PL-35PL UV Printhead MH5420 (248mm, Two Color, Short Cable) - N221414J
Ricoh Gen5 N221414J UV Flatbed Printer Head 248mm Condition New for Solvent and UV Ink


This GEN5 UV printhead is suitable for a range of UV, water and solvent printers (Ricoh part number N221414J / N221414T).
SKU: PPHRI18035
Manufacturer part number: N221414J
Manufacturer: Ricoh
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan


This GEN5 UV printhead is suitable for a range of UV, water and solvent printers (Ricoh part number N221414J / N221414T). It has a total of 1.280 nozzles. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 248mm long in total (head body + cable + connectors). The head cable is 148 mm long. This printhead is the original Durst Alpha 190 / 330 printhead. This printhead comes with the hose barbs which can easily be removed if needed.

This printhead comes with the hose barbs which can easily be removed if needed.



Specifications

Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo type: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: UV Inks
Life: 100 billion actuations per nozzle


Compatibility:
Agfa Jeti Mira MG2716 S/HS
Agfa Jeti Mira MG2732 S/HS
Agfa Jeti Tauro H2500
Agfa Jeti Titan HS
Agfa Jeti Titan S

Akad NovaJet UV M6

CET Color Q5-1000
CET Color Q5-1000h
CET Color Q5-250
CET Color Q5-250h
CET Color Q5-500
CET Color Q5-500h

Docan 1212 UV
Docan FR3210
Docan FRT3116
Docan M10
Docan M6
Docan M8

Durst Alpha 190
Durst Alpha 330

Handtop HT1600UV HR4
Handtop HT1610UV FR4
Handtop HT2500UV HR8
Handtop HT2512UV-D FR8
Handtop HT3116UV FR8
Handtop HT3200UV HG12
Handtop HT3200UV HR8

Quantum Matan 5m
