Original Seiko 1024HG-L 28PL printhead - IEB1024N0L-2F01
zoom_in
  • On sale!
  • New
  • Original Seiko 1024HG-L 28PL printhead - IEB1024N0L-2F01
  • Original Seiko 1024HG-L 28PL printhead - IEB1024N0L-2F01
  • Original Seiko 1024HG-L 28PL printhead - IEB1024N0L-2F01
  • Original Seiko 1024HG-L 28PL printhead - IEB1024N0L-2F01

Original Seiko 1024HG-L 28PL printhead - IEB1024N0L-2F01

$985.00

Availability: In stock
SKU: PPHSE1024HGL
Manufacturer part number: 1024HGL
Manufacturer: Seiko
HTS Code: [EU] 84439990
Country of origin : Japan
Package：Original Manufacture Package
Warranty : This printhead carries a manufacturer warranty

Quantity

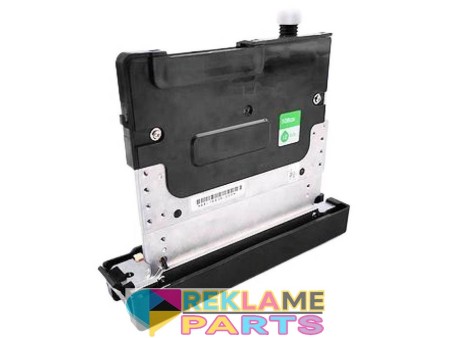

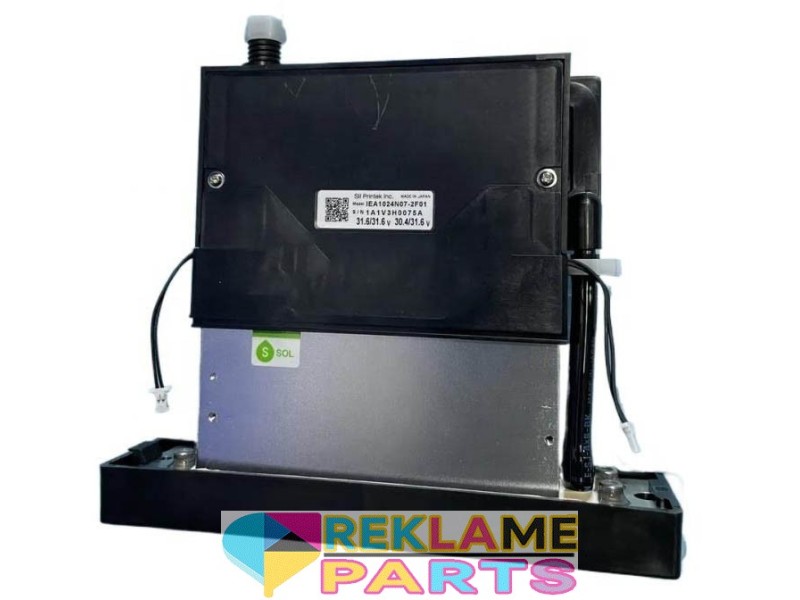

This Seiko 1024HG-L 28PL Solvent / UV printhead is suitable for a range of printers, including Infiniti printers. This printhead is a state of the art grayscale print head with a built-in damper assembly and a nozzle guard. This is the original Seiko part (number IEB1024N0L-2F01 replacing IEA1024N07-2F01 and IEB1024T0L-2G01). We recommend to change the head cables when installing a new printhead.



Specifications
☑️ Drop Volume: 1024HG-L = 28 pL @ 1 drop binary, 6m/s
☑️ Native Nozzle Resolution:180 npi (2 colors),360 npi (1 color)
☑️ Usable Ink Types: Oil-, UV-, Sovlent-based
☑️ Possible Print directions: Vertical and Horizontal
☑️ Number of grey levels: 8
☑️ Jetting frequency: TBD
☑️ Active Nozzles: 1024 at 4 rows
☑️ Ink Inlets: 2
☑️ Print Width: 72.17 mm
☑️ Printhead weight: less than 570 g
☑️ Dimensions: 137.0 x 38.0 x 115.7 mm
☑️ Driving Interface: Parallel interface, I2C-compatible serial communication

IEB1024N0L-2F01
25 Items

Specific References

MPN
IEB1024N0L-2F01
