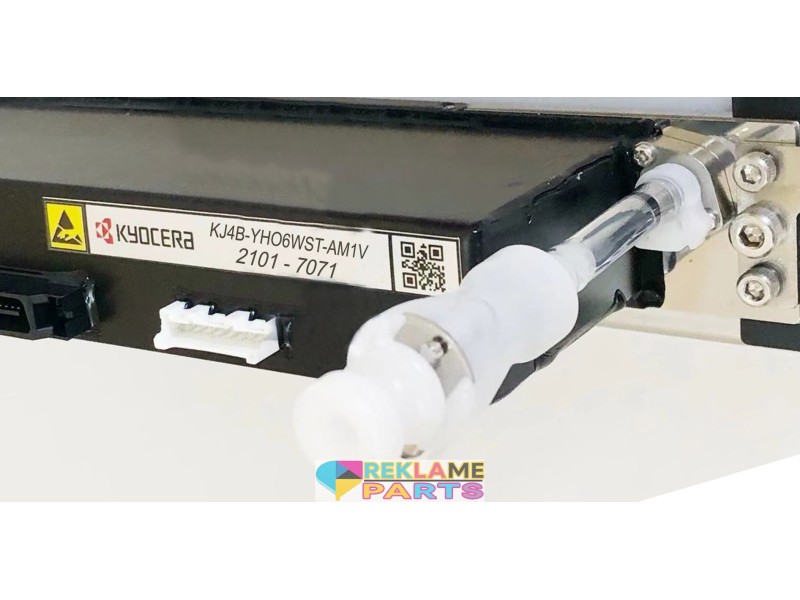

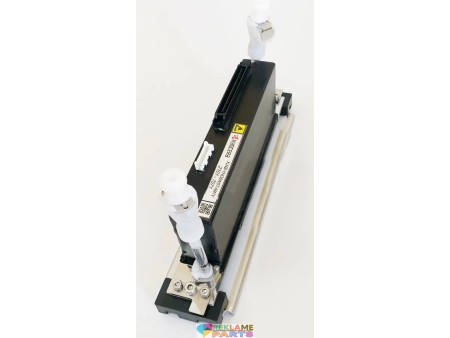

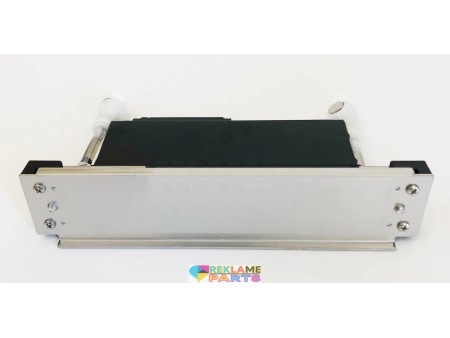

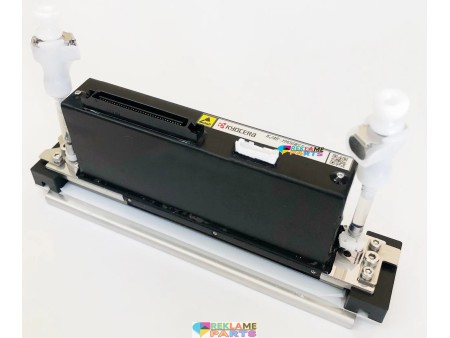

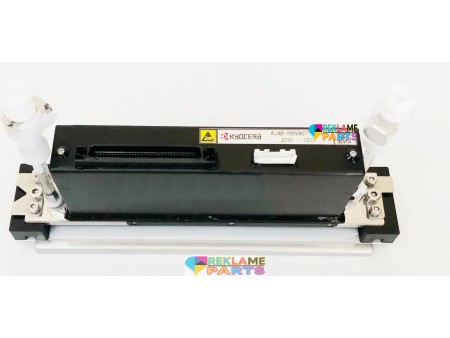

Kyocera KJ4B-YHO6WST-AM1V Print head

Kyocera KJ4B-YHO6WST-AM1V Print head

The Kyocera KJ4B-YHO6WST-AM1V is part of the KJ4B-YH series, a high-speed aqueous (water-based) inkjet printhead designed for textile and industrial printing. It delivers 600 dpi resolution, supports a maximum drive frequency of 40 kHz, and uses 2,656 nozzles across a 108.25 mm print width.


Specifications :

Model: KJ4B-YHO6WST-AM1V
Series: KJ4B-YH (Water-based inkjet printheads)
Manufacturer: Kyocera Corporation (Japan)
Ink Type: Aqueous (water-based)
Resolution: 600 dpi (single color)
Maximum Drive Frequency: 40 kHz
Print Speed: Up to 100 m/min (depending on system integration)
Drop Volume: ~5 picoliters (pL)
Nozzle Count: 2,656 nozzles
Effective Print Width: 108.25 mm
Nozzle Pitch: 0.042 mm
Dimensions: 200 × 25 × 59.3 mm
Weight: 420 g (dry weight)
Resolution    600 dpi
Drive Frequency    40 kHz
Print Speed    ~100 m/min
Drop Volume    5 pL
Nozzles    2,656
Effective Print Width    108.25 mm
Dimensions    200 × 25 × 59.3 mm
Drop Rate: ~40,000 drops per second per nozzle
Country of Origin: Japan.



Performance & Compatibility
Ink Recirculation: Supported (helps prevent clogging and ensures stable jetting)
Recommended Ink Viscosity: Adjustable with internal heater (typically 3–6 mPa·s)
Applications: Direct-to-textile printing, industrial graphics, packaging, and high-speed aqueous ink systems
