Dimatix starfire SG600SC printhead

$2,695.00

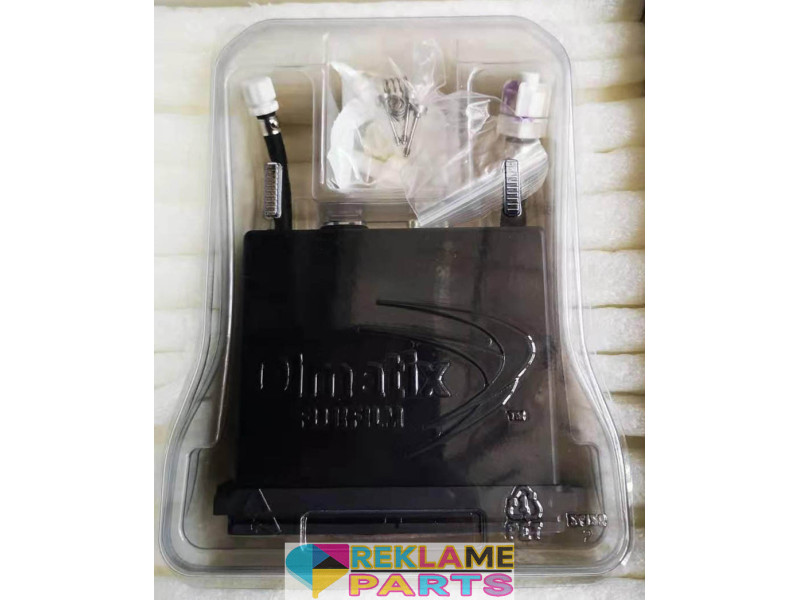

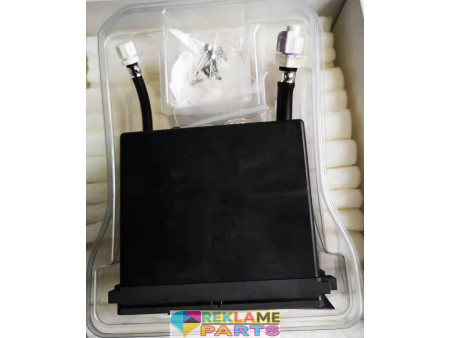

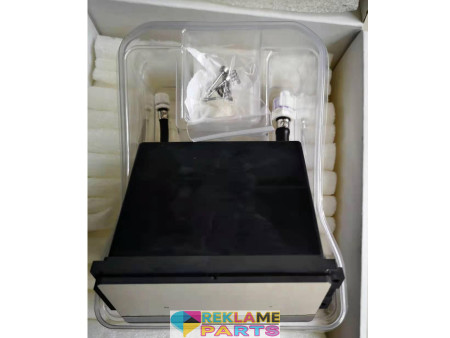

Dimatix starfire SG600SC printhead

The FUJIFILM Dimatix STARFIRE SG600 is purpose-built for today’s
demanding high- speed scanning and single-pass industrial
systems designs. It is an high-performance piezoelectric dropon-demand printhead for one of two channel configurations and
resolution of up to 600dpi.

Quantity

Dimatix starfire SG600SC printhead

The FUJIFILM Dimatix STARFIRE SG600 is purpose-built for today’s
demanding high- speed scanning and single-pass industrial
systems designs. It is an high-performance piezoelectric dropon-demand printhead for one of two channel configurations and
resolution of up to 600dpi.

Performance
• 600dpi resolution with drop sizes ranging from 6–33pL
• 1536 individually addressable jets
• Versadrop binary and grayscale jetting with open and editable waveform utility
• Single and two-channel configurations


Technical Specifications
Number of Addressable Jets / Module : 1536
Print Width (mm/in):  64.96 (2.55)
Native Resolution (dpi):  600 (300 2C)
Firing Frequency (kHz): 50 /18
Versadrop Max Productivity (ng-kHz): 600
Native Drop Size / Largest Drop Size (pL): 12 / 33
Nozzle Plate Technology:  Metal
Compatible Fluids:  UV-curable, organic solvents, and aqueous inks
Viscosity Range (cP):  8–20 (10–14 for highest productivity)
Temperature Control:  Yes
Inkjet Operating Temperature Range (C/F:  Up to 50° (122°)
Integrated Temperature Sensor:  Included
OEM Accessible Non-volatile Memory: 64-byte rewritable












SG600SC
