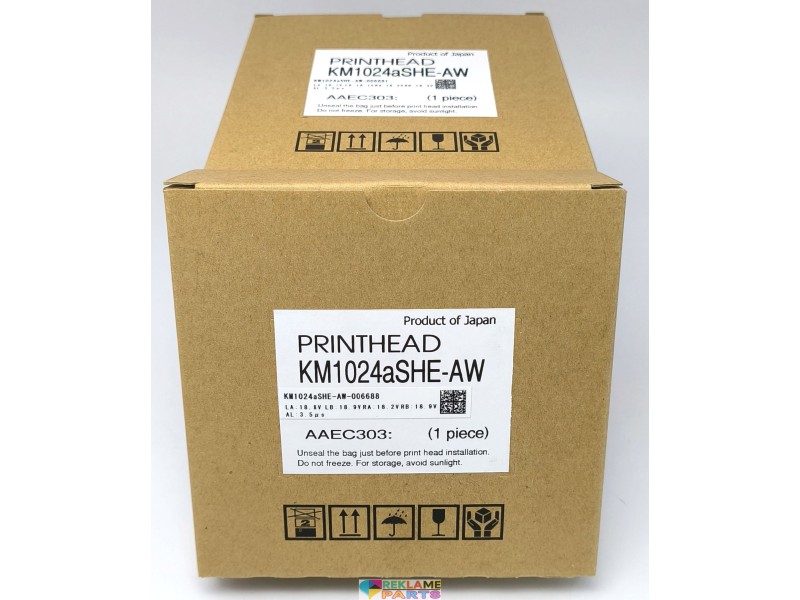

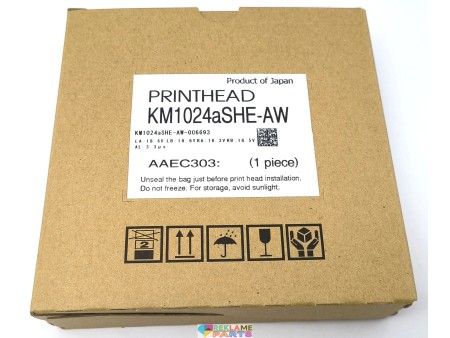

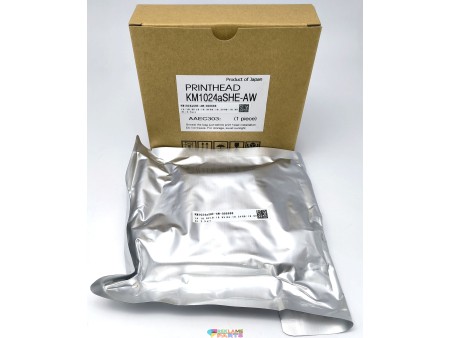

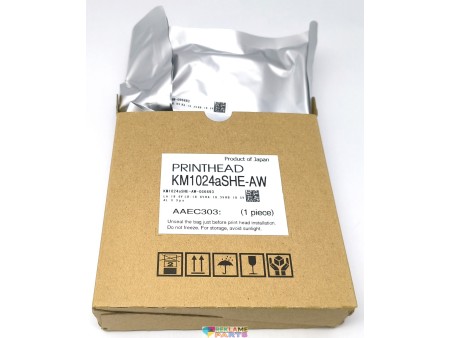

Original Konica Km1024a SHE-AW Printing Head for Uv Flatbed Inkjet Printers

Original Konica 1024a Km1024a SHE-AW Printing Head for Uv Flatbed Inkjet Printers


The Konica Minolta KM1024a SHE Printhead has 1024 nozzles. It is compatible with solvent, UV, oil, water-based inks. We offer 2 versions of this printhead : one version that has inklets for ID 4mm ink tube and one version that has inklets for 6mm ink tube.

High Productivity Analogue Waveform : Adopting analogue waveform that can achieve high productivity and print accuracy in multiple drops. High flexibility to optimize the waveform for individual inks. 6pl /40kHz, 20pl/ 22kHz is achievable.

Compact Print Head : Light weight (150g) and compact (17.6mm wide) print head enables compact printer design. Mechanical compatibility with KM1024i series print heads.

Robust Nozzle Plate : New nozzle plate material with even higher scratch resistance around 100 times* better than the previous version. *Based on internal measurement

High Drop Accuracy : Introduced a new production method to optimize the drop velocity for individual nozzles. Analogue waveform also enables improved drop accuracy.


Specifications:
SKU: PPHKM197254
Manufacturer: Konica Minolta
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan
Drive Mode: Independent
# of nozzle: 1024
Print Width (mm): 72
Head dimensions : W: 131.2mm x D: 17.6mm x H: 97mm
Regular jetting frequency (kHz)  40kHz (Binary) :22kHz (4dpd)
Drop volume (pL): 6pL (Binary) 20pL (4dpd)
Jetting temperature: RT~55℃
Internal heater: Available
Ink Type: Solvent, Oil, UV inks.
Ink Viscosity (mPa・s): 7-10
Waveform: Analogue
Weight: 150g
Grey scale level: 8 level
We recommend to change the head cables when installing a new printhead.
