ujifilm Dimatix StarFire SG1024LC Printhead

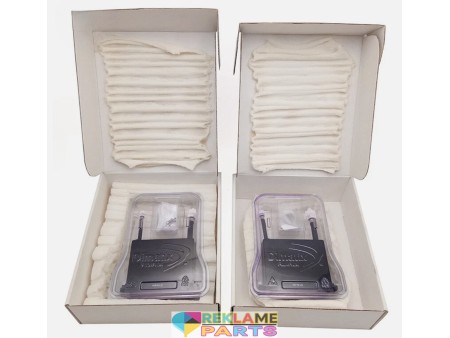

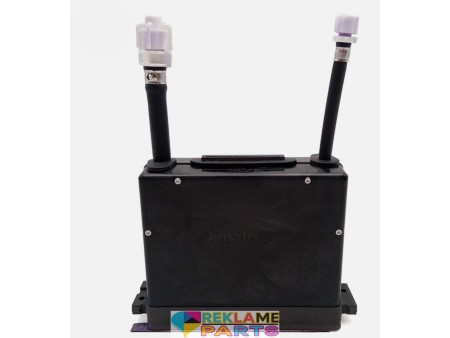

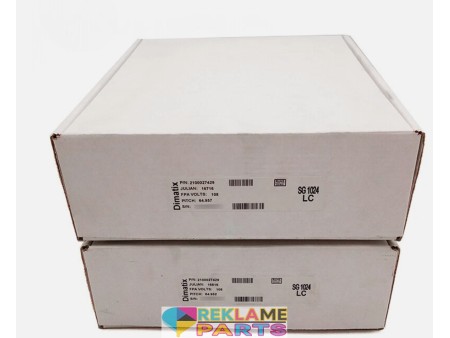

Fujifilm Dimatix StarFire SG1024LC Printhead



Specifications:

The StarFire™ SG1024LC is a compact, self-contained unit compatible with solvent, UV-curable and aqueous ink formuLCtions.
SKU: SG1024/LC
Manufacturer part number: SG1024/LC
Manufacturer: Dimatix
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan

Features

Number of addressable Jets per module: 1024
Print width: 64.96mm (2.55 in)
Native resolution: 400 dpi
Native drop size: 72pl
LCrgest drop size: 200pl
Inkjet operating temperature range: Up to 50°C (122°F)
Nominal fluid viscosity: 8-20 cP recommended)
Nozzle PLCte technology: Metal
Printhead heat type: Integrated heater, thermal transfer
Integral temperature sensor: Integrated
Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks


Starfire SG1024/LC Printhead Specifications

Number of Addressable Jets/Module: 1024
Print Width (mm/in): 64.96 (2.55)
Native Resolution (dpi): 400 (200 2C configuration)
Firing Frequency (kHz): 20/8
Versadrop Max Productivity (ng/kHz): 1500
Native Drop Size/LCrgest Drop Size (pl): 80/200
Nozzle PLCte Technology: Metal
Compatible Fluids: UV-curable, organic solvents, and aqueous inks
Viscosity Range (cP): 8–20 (10–14 for highest productivity)
Temperature Control: Yes
Inkjet Operating Temperature Range (C/F): Up to 50°C / 122°F
Integrated Temperature Sensor: Included
OEM Accessible Non-voLCtile Memory: 64-byte rewritable
