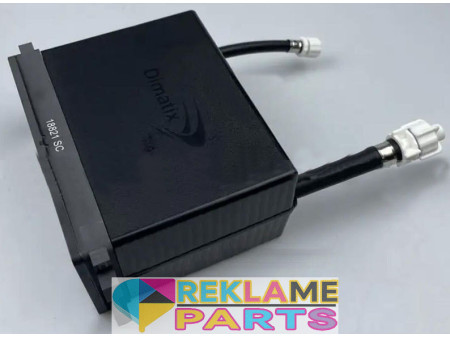

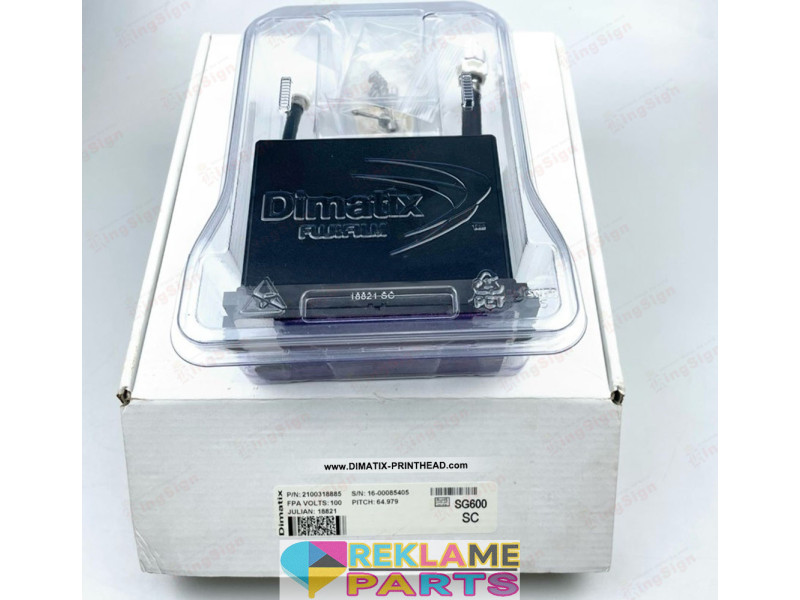

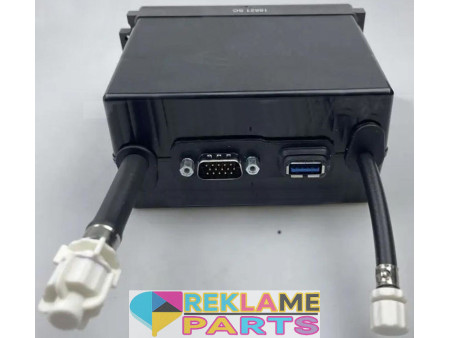

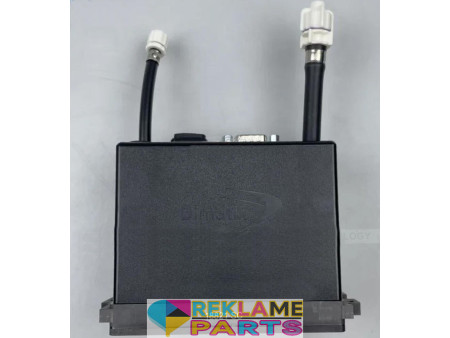

FujiFilm StarFire SG600 Printhead

StarFire® SG600 Printhead

The Starfire SG600 printhead family is a breakout inkjet innovation for high-performance printing and decorative applications. It is purpose-built for today’s demanding high-speed scanning and single-pass industrial system designs. It is an easy integrate, high-performance, drop-on-demand printhead for single-color operation at resolutions up to 600 dpi. Robust construction that is repairable from the cover to the collar.

SG600-SA and SG600-SC are compatiable.

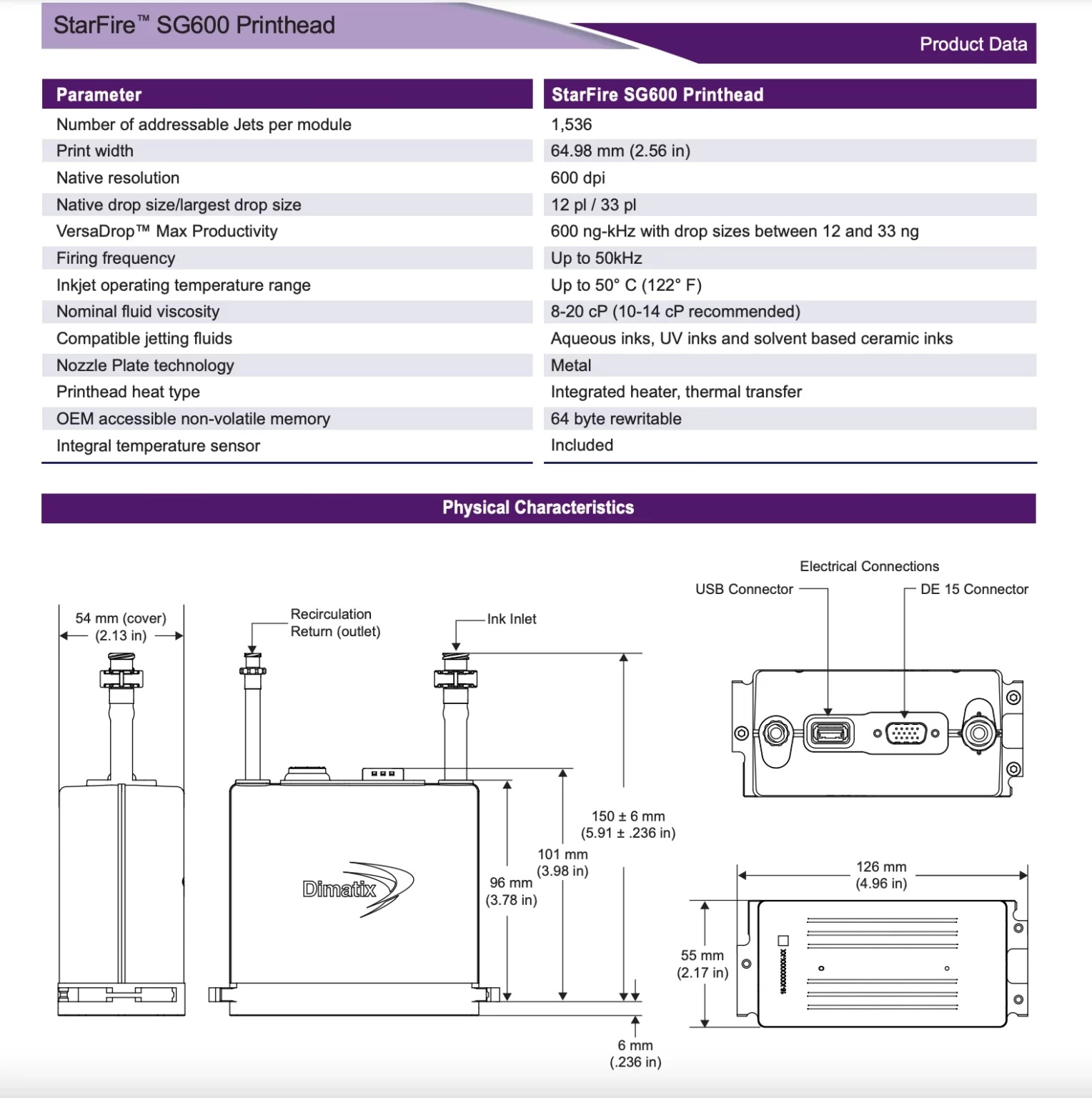

Product Data
Number of addressable Jets per module:  1,536
Print width:   64.98 mm (2.56 in)
Native resolution :    600 dpi
Native drop size/largest drop size:   12 pl / 33 pl
VersaDrop™ Max Productivity:   600 ng-kHz with drop sizes between 12 and 33 ng
Firing frequency:     Up to 50kHz
Inkjet operating temperature range:    Up to 50° C (122° F)
Nominal fluid viscosity:    8-20 cP (10-14 cP recommended)
Compatible jetting fluids:   Aqueous inks, UV inks and solvent-based ceramic inks
Nozzle Plate technology:     Metal
Printhead heat type:  Integrated heater, thermal transfer
OEM accessible non-volatile memory:  64 bytes rewritable
Integral temperature sensor:  Included


Features
- Single color operation
- Robust and repairable construction
- 12 to 33 picoliter drop sizes
- 1,536 individually addressable jets
- Incorporate VersaDrop™ binary and grayscale jetting
- RediJet® continuous ink recirculation


FUJIFILM Dimatix is the world leader in manufacturing drop-on-demand inkjet products and technologies with over 1,000 patents since its inception as Spectra Corporation in 1985. We provide exceptional products and customer support.
