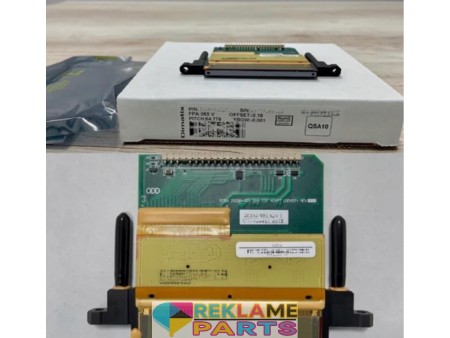

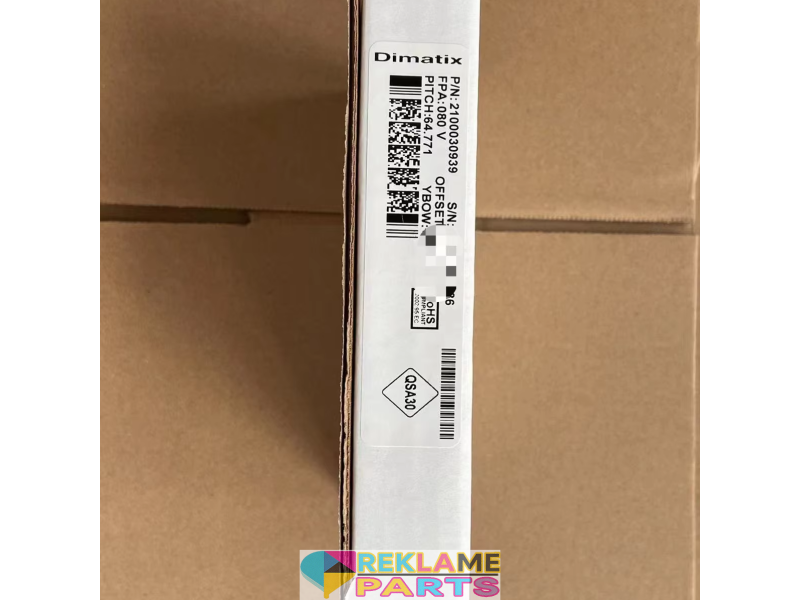

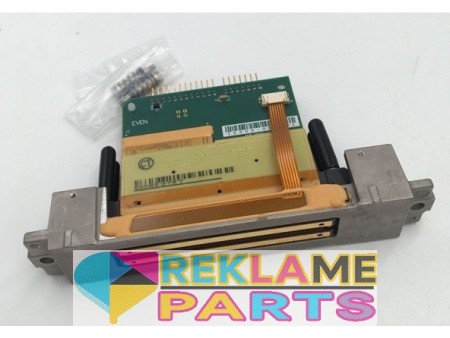

Performa Sapphire QS-256/80 AAA Printhead without hose barb Use For ExOne S-Max
zoom_in
  • Performa Sapphire QS-256/80 AAA Printhead without hose barb Use For ExOne S-Max
  • Performa Sapphire QS-256/80 AAA Printhead without hose barb Use For ExOne S-Max
  • Performa Sapphire QS-256/80 AAA Printhead without hose barb Use For ExOne S-Max

Performa Sapphire QS-256/80 AAA Printhead with hose barbs 4.5mm

$1,164.00

Original New Dimatix Performa Sapphire QS-256/80 AAA Printhead
Performa Sapphire QS-256 80 AAA Printhead with hose barbs 4.5mm



Dimatix Sapphire QS-256/80 AAA printhead with hose barbs 4.5mm features 256 independent channels, arranged in a single row of nozzles at 100 dots-per-inch spacing.

SKU: PPHDI83352
Manufacturer: Dimatix
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : United States

Quantity

Original New Dimatix Performa Sapphire QS-256/80 AAA Printhead
Performa Sapphire QS-256/80 AAA Printhead with hose barbs 4.5mm



Dimatix Sapphire QS-256/80 AAA printhead with hose barbs 4.5mm features 256 independent channels, arranged in a single row of nozzles at 100 dots-per-inch spacing.

SKU: PPHDI83352
Manufacturer: Dimatix
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : United States


Features

- 80 picoliter nominal drop size
- Resolutions up to 450 dpi
- 256 individually addressable, inline nozzles
- VersaDrop™ binary and grayscale jetting modes
- Precise alignment features facilitate drop-in replacement
- Lightweight with thin profile
- Supports UV-curable, solvent, and aqueous-based inks
- Integral temperature sensor
- Dual-ported with minimal wetted surface area
- OEM accessible non-volatile memory area for tracking purposes

This printhead includes hose barbs.


Compatibility
ExOne S-Max

QS-256 80 AAA
12 Items

Specific References

MPN
QS-256 80 AAA
