FujiFilm Dimatix Spectra Nova JA256/80AAA for Kornit Storm II

FujiFilm Dimatix Nova JA256/80AAA

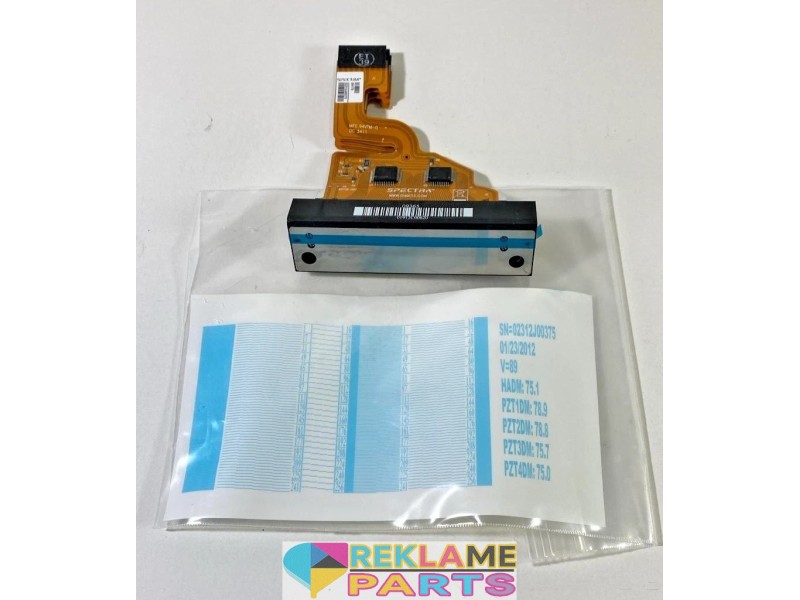

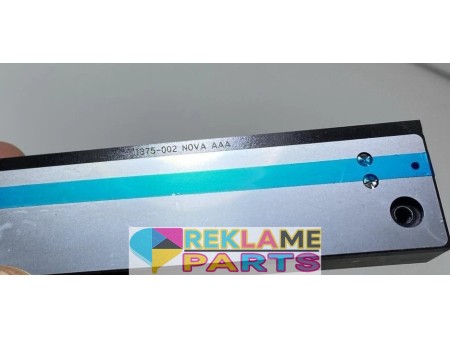

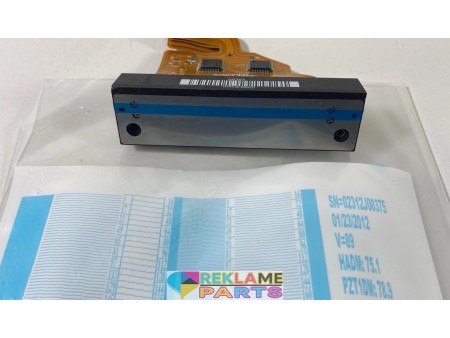

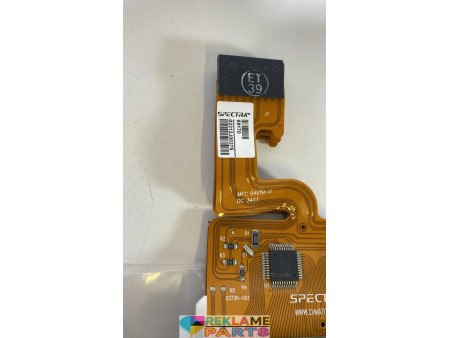

Spectra Nova JA 256/80 AAA Printhead pn: 09170

The Spectra Nova JA 256/80 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi.
SKU: PPHSPNO80
Manufacturer: Dimatix
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : USA


The Spectra Nova JA 256/80 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a 0.011 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually. It corresponds to PN 09170.

These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.

This is the original Vutek print head (number AA90268 and AA90513).


Specifications
- Technology: Piezo Electric
- Max. Resolution: 450 dpi
- Cal. Droplet Size: 80 pico litre
- Adj. Range for Droplet Size: 70-85 pico litre
- Tot. Amount of Nozzles: 256
- Nozzle Spacing: 279 microns
- Nozzle Diameter: 52 microns
- Firing Frequency: 20 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Solvent, water-based and UV Inks


Compatibility:

Agfa Anapurna 100
DGI PolaJet PS-1804
DGI PolaJet PS-3204D
Dilli Neo Plus UVP-1606
Dilli Neo Plus UVP-2506W
EFI Vutek UltraVu 150
Eurotech Eagle S6
Eurotech Eagle S8²
Eurotech Pars
Kornit 931DS
Kornit Storm II
Markem-Imaje 5800
Mutoh Cobra S100UV
Mutoh Osprey 130
Mutoh PJ-1626FE (Toucan Hybrid)
Teckwin TeckPro 320
Teckwin Teckpro S3200

Agfa Anapurna L
DGI PolaJet PS-2504
DGI PolaJet PS-3206D
Dilli Neo Plus UVP-1606W
EFI Vutek UltraVu II 5330
Eurotech Eagle S6²
Eurotech Malakan
Kornit Avalanche
Kornit Thunder 932
Mutoh Cobra S65UV
Mutoh Osprey 75
Mutoh PJ-1626NX (Toucan 64 6c)
Teckwin Teckpro H3200

Agfa Anapurna XL
DGI PolaJet PS-3204
Dilli Neo Plus UVP-2506
Eurotech Eagle S8
Eurotech Mermaid
Kornit Avalanche DC Pro
Mutoh Osprey 102
Mutoh PJ-1624NX (Toucan 64 4c)
Mutoh PJ-2216NX (Toucan 87)
Teckwin Teckpro H5000
