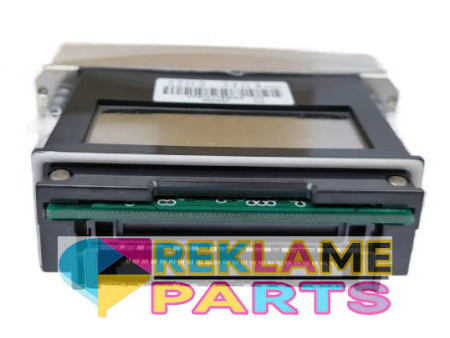

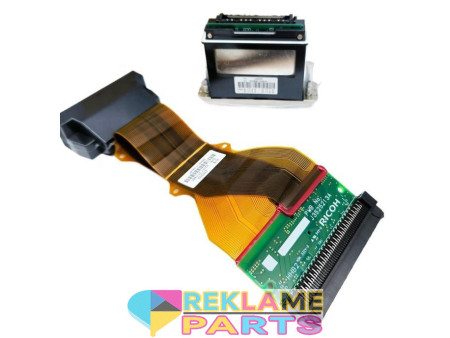

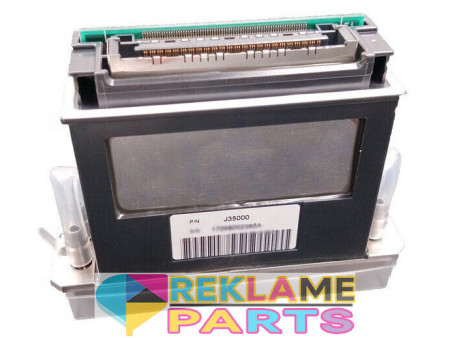

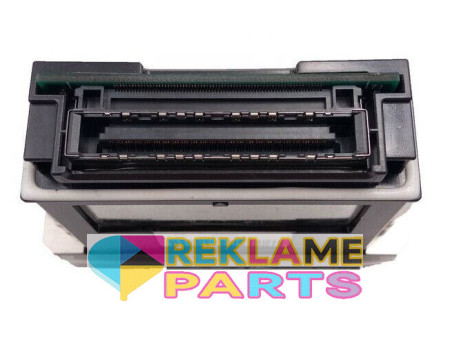

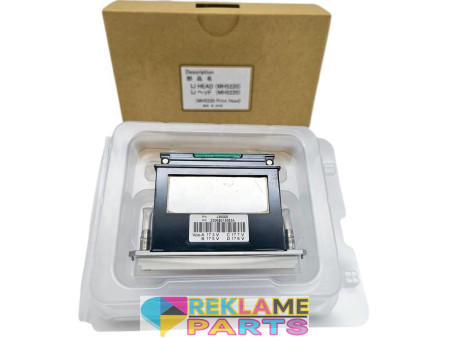

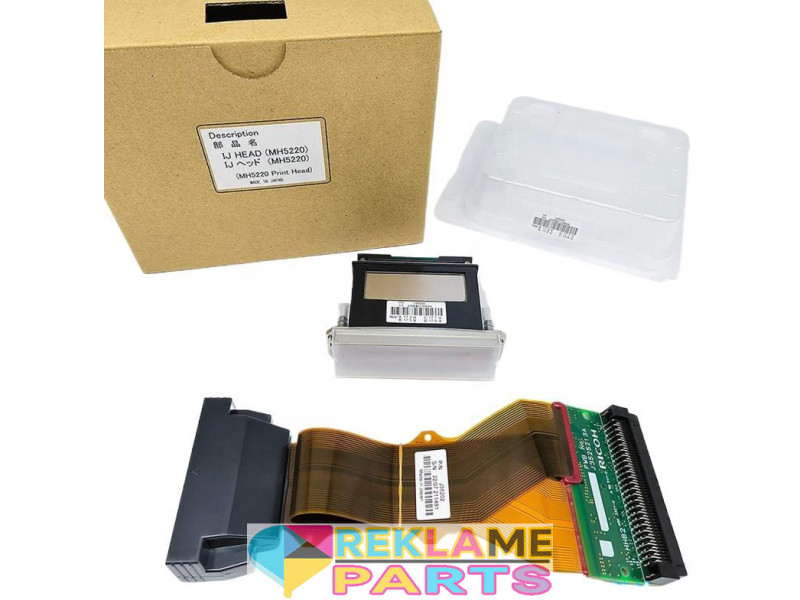

Ricoh GEN5S MH5220 UV J35000 J35202 Printhead For Sign Racer Flatbed 1610

Ricoh GEN5S MH5220 UV J35000 J35202 Printhead
Japan Original Ricoh G5S Printhead Ricoh MH5220 J35202 Printhead
Ricoh GEN5S MH5220 UV J35000 J35202 Printhead

This Ricoh GEN6 UV printhead with a cable length of 248mm is suitable for a range of UV, Solvent and Aqueous based printers.
SKU: PPHRI18071
Manufacturer part number: MH5220
Manufacturer: Ricoh
Weight: 148 g
Country of origin : Japan

This Ricoh head (MH5220 series) is compatible with UV based inks.

A 2.5 pl drop size allows for excellent print quality without graininess. With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Additionally, the ink paths are isolated, enabling a single head to jet up to two ink colors.

Specifications

Dimensions: 89 x 24.7 x 64.2 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Number of nozzles: 1,280 (4 x 320 channels), staggered
Nozzle spacing: 0.1693 mm (1/150")
Max. number of color inks: 2 colors
Temperature control: Integrated Heater and Thermistor
Operator temperature range: 60° C
Drop volume: Binary mode : 2.5pl / Grey-scale mode : 2.5-9pl (depending on the ink)
Jetting frequency: 30kHz
Viscosity range: 10-12 mPa.s
Gray scale: 4 levels
Number of ink ports: 2 x dual ports
Alignment pin direction: front (standard)
Ink compatibility: UV Inks

Use For Sign Racer Flatbed 1610
