KJ4A-RH06CST-WI7V
zoom_in
  • On sale!

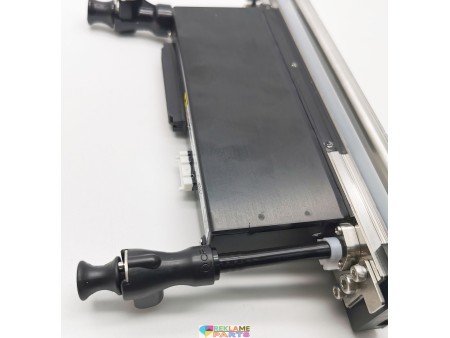

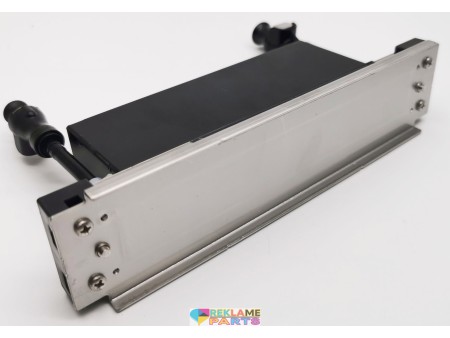

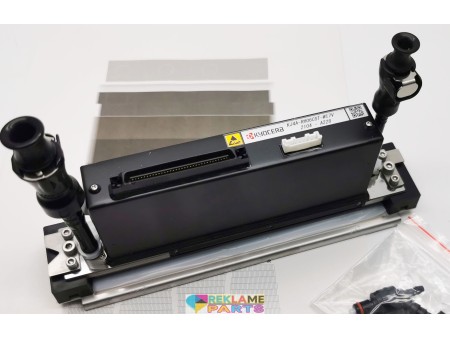

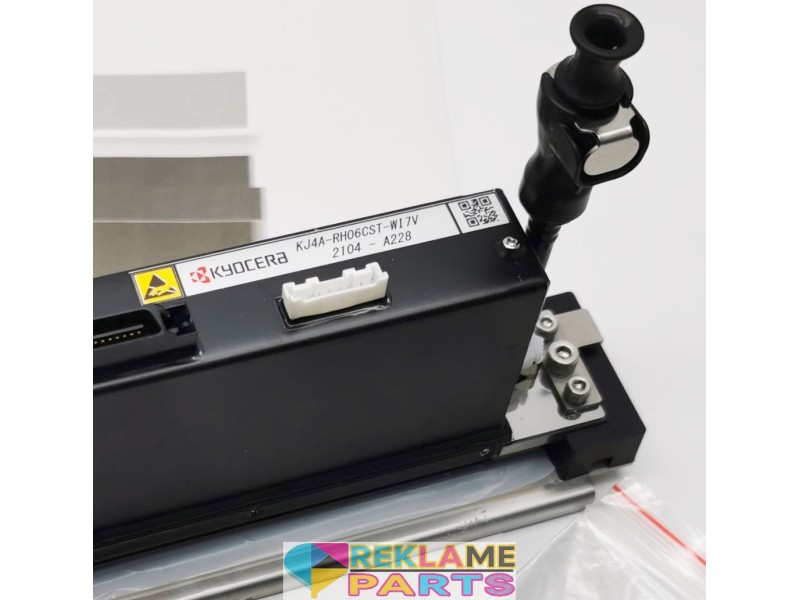

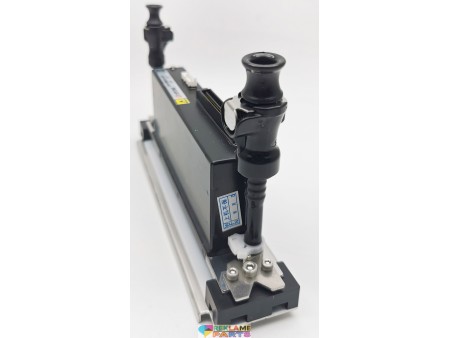

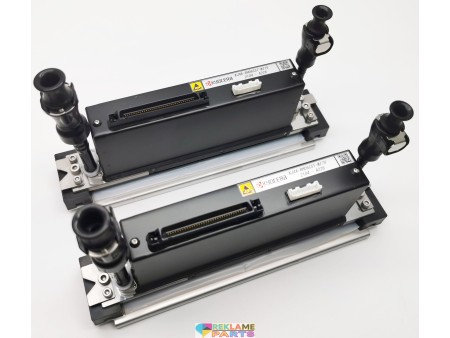

  • Original Kyocera KJ4A-RH06CST-WI7V Printhead
  • Original Kyocera KJ4A-RH06CST-WI7V Printhead
  • Original Kyocera KJ4A-RH06CST-WI7V Printhead
  • Original Kyocera KJ4A-RH06CST-WI7V Printhead
  • Original Kyocera KJ4A-RH06CST-WI7V Printhead
  • KJ4A-RH06CST-WI7V

Original Kyocera KJ4A-RH06CST-WI7V Printhead

$1,785.00

Original Kyocera KJ4A-RH06CST-WI7V Printhead


Technical Specifications:
Model: Kyocera KJ4A-RH06CST-WI7V
Resolution: 600 dpi (single color)
Number of Nozzles: 2,656
Effective Print Width: 108 mm (4.25 inches)
Nozzle Pitch: 0.042 mm
Maximum Drive Frequency: 30 kHz
Drop Volume: ~7 pL
Ink Type: UV ink (supports higher viscosity formulations)
Print Speed: Up to 200 m/min at 600 × 480 dpi, or 150 m/min at 600 × 600 dpi
Dimensions: Approx. 200 × 30.5 × 69.1 mm
Weight: ~500 g
Country of Origin: Japan

Quantity

Original Kyocera KJ4A-RH06CST-WI7V Printhead


Technical Specifications:
Model: Kyocera KJ4A-RH06CST-WI7V
Resolution: 600 dpi (single color)
Number of Nozzles: 2,656
Effective Print Width: 108 mm (4.25 inches)
Nozzle Pitch: 0.042 mm
Maximum Drive Frequency: 30 kHz
Drop Volume: ~7 pL
Ink Type: UV ink (supports higher viscosity formulations)
Print Speed: Up to 200 m/min at 600 × 480 dpi, or 150 m/min at 600 × 600 dpi
Dimensions: Approx. 200 × 30.5 × 69.1 mm
Weight: ~500 g
Country of Origin: Japan


Features:
High-Speed Printing: Designed for single-pass and multi-pass UV inkjet applications.
Durability: Industrial-grade reliability for continuous operation.
Precision: Fine nozzle pitch ensures sharp and detailed output.
Ink Compatibility: Optimized for UV inks, especially higher viscosity formulations.
Applications: Labels, packaging, decorative surfaces, industrial graphics, and substrates requiring thicker ink laydown.

Compatible Printers:
Industrial UV inkjet printers (single-pass and multi-pass)
Flatbed UV printers for rigid substrates (plastic, glass, wood, metal, coated paper)
Roll-to-roll UV printers for flexible packaging and labels
OEM custom-built inkjet systems requiring higher ink deposition for special effects (emboss-like textures, thicker coatings)

KJ4A-RH06CST-WI7V
12 Items

Specific References

MPN
KJ4A-RH06CST-WI7V
