Kyocera KJ4B-QA06NTB-HZ5V-4A Print Head
The Kyocera KJ4B-QA06NTB-HZ5V-4A print head is a high-speed, single-color aqueous inkjet head with 600 dpi resolution, 2,656 nozzles, and a 30 kHz drive frequency. It delivers 5 picoliter drops at up to 75 m/min, equipped with internal filters and a heater for stable performance.
Model: KJ4B-QA06NSB-OP1F-4B
Weight: 1.50kg
SKU: 01.09.01.001.008
Kyocera KJ4B-QA06NTB-HZ5V-4A Print Head
The Kyocera KJ4B-QA06NTB-HZ5V-4A print head is a high-speed, single-color aqueous inkjet head with 600 dpi resolution, 2,656 nozzles, and a 30 kHz drive frequency. It delivers 5 picoliter drops at up to 75 m/min, equipped with internal filters and a heater for stable performance.
Model: KJ4B-QA06NSB-OP1F-4B
Weight: 1.50kg
SKU: 01.09.01.001.008
Specifications:
Brand: Kyocera
Model: KJ4B-QA06NTB-HZ5V-4A
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Ink Type: Aqueous (water-based) inks
Resolution: 600 dpi (one color)
Maximum Drive Frequency: 30 kHz
Drop Volume: 5 picoliters (pl)
Effective Print Speed: 75 meters per minute
Country of Origin: Japan
Condition: Brand new, original
Size: 200 × 25 × 59.3 mm
Dry Weight: 420 g
Number of Nozzles: 2,656
Print Swathe Width: 108.25 mm
Nozzle Pitch: 0.042 mm
Drop Rate: 30,000 drops per second
Usage & Compatibility:
Ink Type Only supports aqueous inks (not UV or solvent).
Applications Textile printing, packaging, labels, and industrial high-speed printing.
Printers Compatible with Kyocera-based industrial inkjet systems and OEM machines designed for KJ4B-QA series heads.
Environment Works best in controlled environments where ink temperature and cleanliness are maintained.
3M™ Liqui-Cel™ SP 2 Series Membrane Contactor - 7100136660 include Fitting for G638W 2X6...
Ricoh GEN5 Water Printhead (Cable: 248mm) - MH5421
Ricoh Gen5 / 7PL Printhead...
Carriage Board for 8 Print Head Konica 512i 1024 KM512i KM1024 for Taimes Solvent Printer...
EAGER EF-G6-B22 Degassing Filter for System Ceramic Inkjet Printer Made in China
$155.00
Fujifilm Dimatix StarFire SG1024SA Printhead For Zimmer Colaris NF 250
$1,680.00
2025 Senyang XP600 conversion kit 4 heads boards for UV flatbed printer xp600 printhead...
Brand New Original KM512i Main Board Version 1.4E for Konica Myjet Printer Printhead
$250.00
KM512-8V A.1 Carriage Head Board for km 512 14pl Printhead Myjet Allwin Inkjet Printer
...
Ricoh MH5441 Gen5 Printhead
Description :
This Ricoh GEN5 water...
Original Hoson XP600 Printer Main Board V1 93 03 Circuit Board Compatible with Two Head DTF...

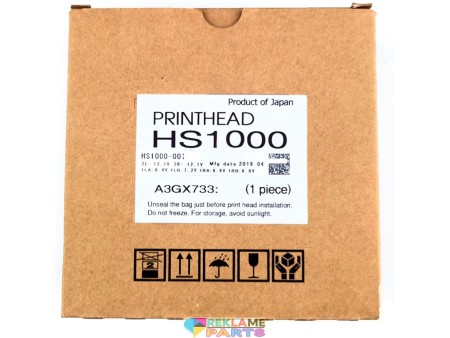

Original Konica KM HS1000 Printhead
