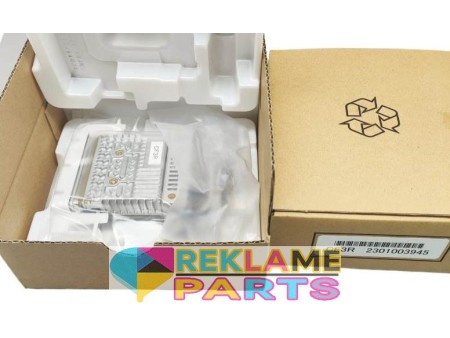

Original T0SHIBA CF3 CF3R Printhead for UV 2513 Flatbed Printer
zoom_in
  • On sale!
  • New
  • Original T0SHIBA CF3 CF3R Printhead for UV 2513 Flatbed Printer
  • Original T0SHIBA CF3 CF3R Printhead for UV 2513 Flatbed Printer
  • Original T0SHIBA CF3 CF3R Printhead for UV 2513 Flatbed Printer
  • Original T0SHIBA CF3 CF3R Printhead for UV 2513 Flatbed Printer
  • Original T0SHIBA CF3 CF3R Printhead for UV 2513 Flatbed Printer
  • Original T0SHIBA CF3 CF3R Printhead for UV 2513 Flatbed Printer

Original T0SHIBA CF3 CF3R Printhead for UV 2513 Flatbed Printer

$687.00

Availability: In stock
SKU: PPHTOCF3R
Manufacturer part number: CF3R
Manufacturer: Toshiba
HTS Code: [EU] 84439990
Country of origin : Japan
Package：Original Manufacture Package
Warranty : This printhead carries a manufacturer warranty.

Quantity

This Toshiba CF3R printhead has 300 npi/row with ink re-circulation through all channels. It is suitable for jetting ink with larger particle size and 2 colors per head. It replaced the Toshiba CF3 printhead, which is discontinued.

We recommend to change the head cables when installing a new printhead.



Specifications
☑️Print Method: Drop on demand piezo
☑️Ink Re-circulation Structure: ink re-circulation through all channels
☑️Print Width: 53.91mm
☑️Number of channels: 639 x 2 colors
☑️Nozzle resolution: 300npi x 2 colors
☑️Number of rows: 2
☑️Nozzle Spacing (Row to row distance): 7.94mm
☑️Grayscale level: 6 levels/0～5drops
☑️Drop Volume: 20pL/5drops
☑️Maximum drop volume: 3～4pL
☑️Frequency: 9.2kHz/5drops
☑️Power Supply Voltage for Driving the Head: +7V～+15V, -7V～-15V
☑️Power Supply Voltage for Driving Circuit: 5V, 24V
☑️Ink type: UV-curing & oil-based
☑️Built-in Temperature Sensor: included
☑️Head Cooling Method: Water-cooling (include water cooling port)
☑️Size, Weight: 96.7mm(W)×31.3mm(D)×100.7mm(H), 285g

We recommend to change the head cables when installing a new printhead.
