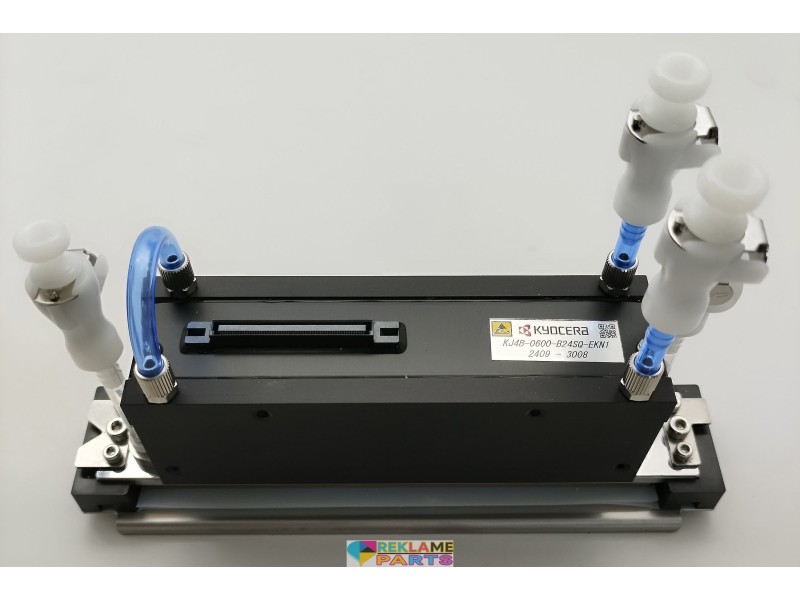

Brand New Kyocera KJ4B-EX600-RC Inkjet Printhead

Kyocera KJ4B-0600RC Inkjet Printhead
Kyocera KJ4B-EX600-RC Inkjet Printhead


Specifications:
Model: KJ4B-0600RC (KJ4B-EX600-RC)
Brand: Kyocera
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Ink Type: Aqueous (water-based inks, including MICR ink for security printing)
Resolution: 600 dpi (single-color configuration)
Maximum Drive Frequency: 30 kHz
Drop Volume: 5–16 picoliters (variable)
Print Speed: Up to 76.2 m/min (depending on integration)
Nozzles: 2,656
Effective Print Width: 108.33 mm
Nozzle Pitch: 0.042 mm
Drop Rate: 30,000 drops per second
Recommended Ink Viscosity: 5.0–6.0 mPa·s (adjustable with built-in heater)
Dimensions: 200 × 42.5 × 68.1 mm
Weight: ~540 g (dry)
Country of Origin: Japan
Condition: Brand new (original)



Features:
Optimized for high-speed single-pass printing with aqueous inks.
Supports multi-pass textile printing as well as transaction, document, and security printing (including MICR ink).
Built-in heater stabilizes ink viscosity for consistent jetting.
Compact design for easy integration into industrial printers.
Part of the KJ4B series, ensuring mechanical and electrical compatibility with other heads in the family.


Compatible Printers:

The KJ4B-0600RC is integrated into industrial inkjet printers from OEMs that support Kyocera’s recirculation heads, including:

Textile printers (e.g., MS Printing Solutions, EFI Reggiani, Atexco)
Corrugated board printers
Building material printers
Document and transaction printing systems
