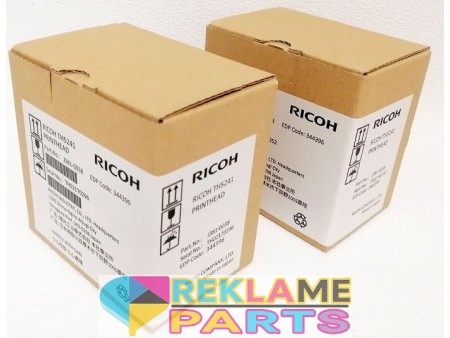

Genuine RICOH TH5241 Printhead For Focus Atlas-1311 UV

Genuine RICOH TH5241 Printhead For Focus Atlas-1311 UV

Original RICOH TH5241 Ricoh Gen5i Printhead for UV Flatbed Printer G5i Print Head

SKU: PPHRI18186

Manufacturer part number: TH5241

Manufacturer: Ricoh

HTS Code: [EU] 84439990

This printhead carries a manufacturer warranty.

Country of origin : Japan

This RICOH TH5241 printhead is compatible with UV, Solvent and Aqueous based inks.

With 1,280 nozzles configured in 4 x 320 nozzle rows, this head achieves high-resolution 600dpi printing.

This inkjet printhead can be used for various applications.

Specifications

Method: thin-film piezoelectric transducer with bend mode

Print Width: 27.1 mm (1.06")

Total printhead dimensions: 52.7 x 45.8 x 55.4 mm

Number of nozzles: 1,280 (4 x 320 channels), staggered

Nozzle Resolution: 600npi(2 colors, 1 color)　300npi(4 colors)

Nozzle spacing: A : 2.286mm B : 6.095mm

Compatible ink: UV, Solvent, Aqueous.

Weight: 63g

Max. number of color inks: 4 colors

Temperature control: Integrated thermistor, without heater.

Operator temperature range: 40° C

Firing frequency: 40kHz (2 levels); 24kHz (4 levels)

Grey-scale: 4 levels

Drop volume: 3pl (Single drop); 3～12pl (max 21pl) (Multi drop)　

Viscosity range: 7ｍPa・s

Surface tension: 27±5mN/m

We recommend to change the head cables when installing a new printhead.

Compatibility :

Focus Atlas-1311 UV

Mtutech 360 Rotary UV
