Spectra Skywalker 128/50pl Printhead for Jeti/infinity/SuperJet-M Printer

FujiFilm Dimatix Skywalker HD128/50
Spectra Skywalker 128/50pl Printhead for Jeti/infinity/SuperJet-M Printer

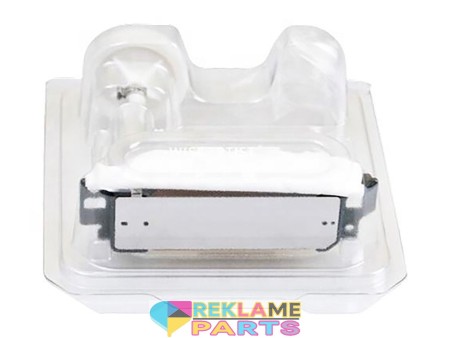

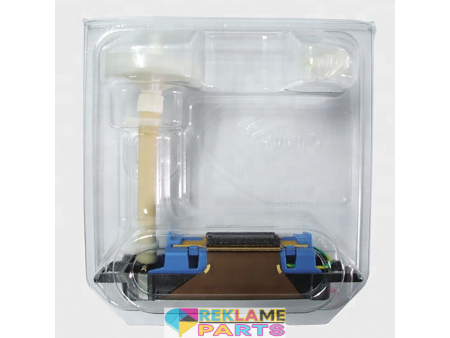

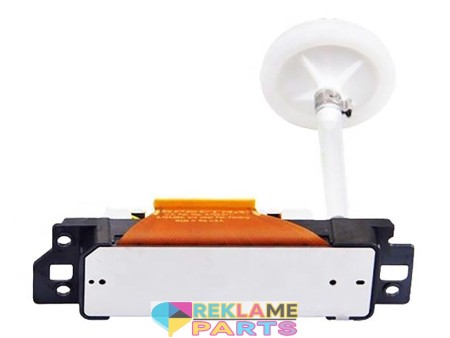

Brand New Spectra Skywalker 128/50 Pl Printhead


The Spectra Skywalker JA 128/50 jetting assembly has been designed specifically to meet the exacting performance requirements of high productivity, solvent based, wide format graphics printing. A total of 128 individually accessible channels are driven from a single piezoelectric ceramic crystal, providing excellent channel-to-channel uniformity. The nozzles are arranged in a single
line, at a 0.020-inch spacing, for maximum interlace flexibility. The jetting assembly design has been optimized for high dutycycle operation up to 16 kHz. The high drop velocity and excellent jet straightness minimize banding artifacts. The Spectra Skywalker JA 128/50 jetting assembly is easy to integrate into printer carriages. It incorporates an integral mounting bezel molded out of a durable, chemically inert engineering plastic. Registration features enable easy alignment to the carriage frame.

The fluid interface is convenient and easy, through a female Luer Lock fitting. Two electrical connectors at the top of the
jetting assembly allow each channel to be individually addressed. An optional Driver Chip Module reduces the electrical interface
requirements to two serial data streams and the high voltage fire pulse used to actuate the pumping chambers. Numerous design
features have been incorporated to promote a long service life, including a robust stainless steel nozzle plate and replaceable
ink inlet filter. All static sensitive electronics are located upstream of the jetting assembly, minimizing the likelihood of
electrical failures. The fluid interface is positioned away from the jetting assembly housing to reduce the possibility of
contaminating the electrical contacts.
Printer compatibility :

Wit-color Ultra1000-Skywalker-12H
WIT-COLOR Ultra1000-Skywalker-16H
APRINT 250Nano
APRINT 330Nano-8
APRINT 330Nano-12
Flora HJII5000SW
Flora LJ320SW
GONGZHENG GZT3212AK,
GONGZHENG GZCK3212AK
ORASIGN W-JET320SW
