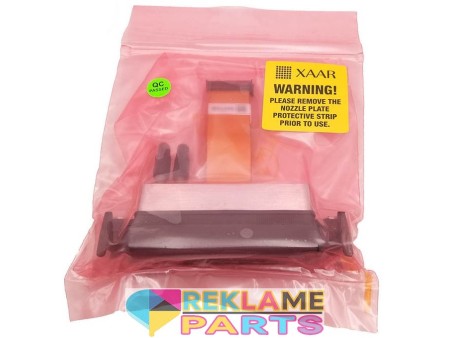

Original Xaar 1003 GS40 UV OIL Ink Print Head - XP10100040

$1,251.00

Original Xaar 1003 GS40 Printhead XP10100040

Availability: In stock
SKU: 1003 GS40
Manufacturer part number: XP10100040
Manufacturer: Xaar
HTS Code: [EU] 84439990
Country of origin : United Kingdom

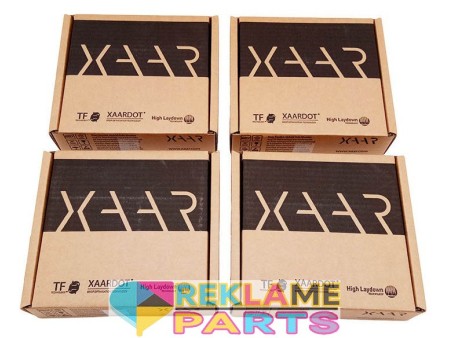

Package：Original Manufacture Package
Warranty : This printhead carries a manufacturer warranty.

The Xaar 1003 GS40 is a heavy‑laydown industrial printhead designed for applications requiring large drop volumes (40–160 pL) and textured effects, especially in ceramic tile decoration and UV printing. It features 1000 active nozzles, 5 greyscale levels, and advanced ink recirculation for reliability.

Description
Product Details

The Xaar 1003 GS40 is optimized for high laydown applications where large ink volumes are required:
☑️ Ceramic tile decoration (deep color intensity, textured effects)
☑️ Industrial UV printing (wood laminates, glass, packaging)
☑️ Special effects printing (embossed textures, coatings)
☑️ Functional fluids (where thick layers are needed)

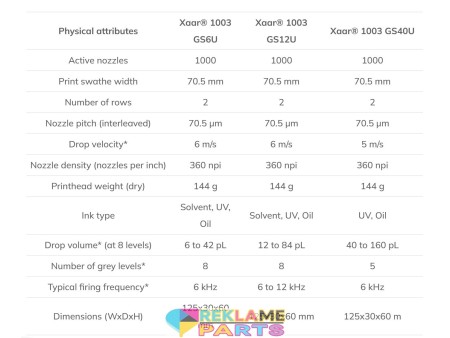

Specifications
☑️ Model Xaar 1003 GS40
☑️ Technology Piezoelectric drop‑on‑demand inkjet
☑️ Architecture Hybrid Side Shooter™ with TF Technology™ (continuous ink recirculation)
☑️ Nozzles 1000 active nozzles
☑️ Print Swathe 70.5 mm
☑️ Native Resolution 360 npi (nozzles per inch)
☑️ Greyscale Levels 5 levels
☑️ Drop Size Range 40–160 pL (GS40 variant)
☑️ Firing Frequency ~6 kHz
☑️ Drop Velocity 5 m/s
☑️ Ink Compatibility UV‑curable and oil‑based inks
☑️ Viscosity Range Wide range, including heavily pigmented inks
☑️ Dimensions Approx. 125 × 30 × 60 mm
☑️ Weight ~0.6 kg
☑️ Durability Features XaarGuard™ nozzle plate protection, Optimised Geometry nozzles
☑️ Maintenance Minimal, thanks to TF Technology™ preventing clogging and sedimentation
☑️ Compatibility Backwards compatible with Xaar 1001 and 1002 systems
