FujiFilm Dimatix S-class SE 128 AA

FujiFilm Dimatix S-class SE 128 AA

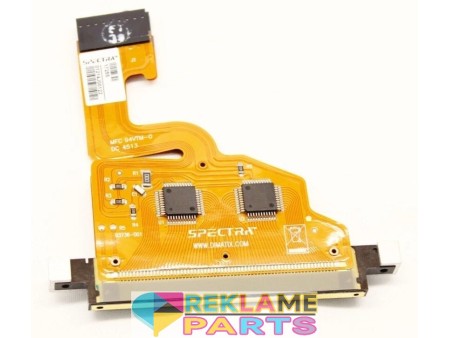

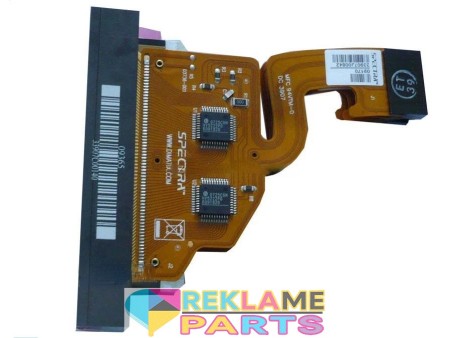

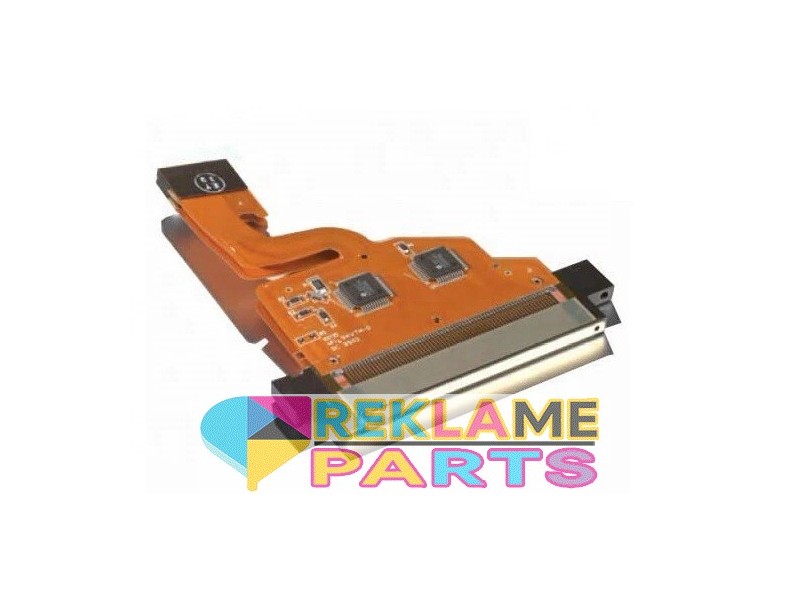

Spectra SE-128 AA

The Spectra SE-128 AA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 900 dpi.

SKU: PPHSPSE128
Manufacturer: Dimatix
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : USA



The Spectra SE-128 AA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 900 dpi. Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 nozzles. It has been calibrated for a droplet size of 30 pico litre and has a maximum firing frequency of 40 kHz.
This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
These Spectra SE-128 AA heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.


Specifications
- Technology: Piezo Electric
- Max. Resolution: 900 dpi
- Cal. Droplet Size: 30 pico litre
- Adj. Range for Droplet Size: 25-30 pico litre
- Tot. Amount of Nozzles: 128
- Nozzle Spacing: 508 microns
- Nozzle Diameter: 35 microns
- Firing Frequency: 40 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Solvent and UV Inks

Gandinnovations / AGFA: Jeti printers use SE-128, SL-128 or SM-128 print heads depending on the original printer configuration.


Compatibility:

Agfa Columbia Turbo
Agfa Jeti 3150 X-2 UV Flatbed
Agfa Jeti 3324 Solvent RTR
Agfa Jeti 3348 UV Galaxy RTR
Agfa Jeti 5024 UV JetSpeed RTR
Agfa Onset S70
Agfa Spyder V

Dilli Neo UV-LED GlassTech

Durst Rho 320R

Graphics One Fuzion UV

Luscher JetPrint 3530 UV

Spühl Virtu RS 25
Spühl Virtu RS 50

Agfa Jeti 1224 UV HDC FTR
Agfa Jeti 3312 Solvent RTR
Agfa Jeti 3324 UV RTR
Agfa Jeti 3348 UV Jetspeed RTR
Agfa Jeti 5048 UV XL JetSpeed
Agfa Spyder 320

Durst Rhopac 160

Spühl Virtu RS 35

Agfa Jeti 2030 X-2 UV Flatbed
Agfa Jeti 3324 AquaJet RTR
Agfa Jeti 3348 Solvent HSS RTR
Agfa Jeti 5024 Solvent RTR
Agfa Onset S20
Agfa Spyder 320Q

Spühl Virtu RS 36
