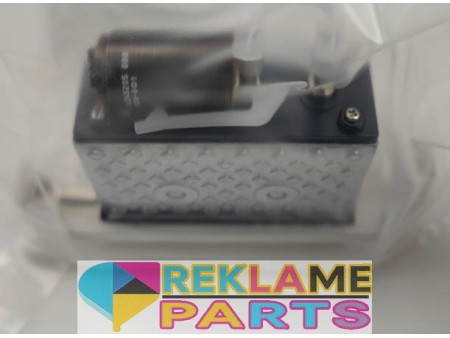

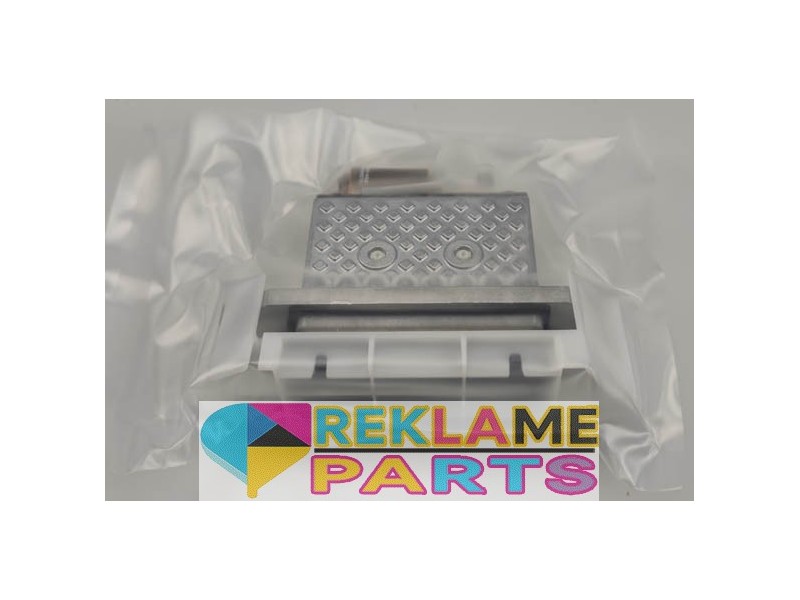

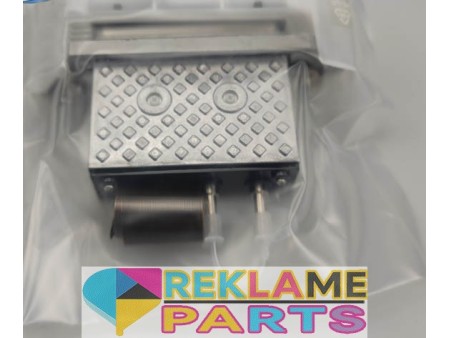

Original Toshiba CF1BL Printhead
zoom_in
  • Original Toshiba CF1BL Printhead
  • Original Toshiba CF1BL Printhead
  • Original Toshiba CF1BL Printhead

Original Toshiba CF1BL Printhead

$1,132.00

Availability: In stock
SKU: PPHTOCF1BL
Manufacturer part number: CF1BL
Manufacturer: Toshiba
HTS Code: [EU] 84439990
Country of origin : Japan
Package：Original Manufacture Package
Warranty : This printhead carries a manufacturer warranty.

Quantity

This Toshiba CF1BL printhead is suitable for varieous range of printers. This is the original Toshiba part number CF1BL.


Specifications
☑️ Print Method: Drop on demand piezo
☑️ Print Width: 53.7mm
☑️ Number of channels: 636
☑️ Resolution: 300dpi / 84.5 micron
☑️ Grayscale level: 4 levels/0,5,6,7drops
☑️ Drop Volume: 57 - 80pl
☑️ Maximum dot frequency: 4.8kHz/7 drops
☑️ Linear speed: 24m/min (at max dpd)
☑️ Driving voltage: 14 - 31V
☑️ Drop velocity: 7 - 9 (m/s)
☑️ Weight: 161g (185g with positionning plate)
☑️ Dimension: 94 (W) x 79 (D) x 26 (H) mm / 111 (W) x 79 (D) x 34 (H) mm with repositionning plate
☑️ Jettable fluids: UV-curing, oil-based

CF1BL
13 Items

Specific References

MPN
CF1BL
