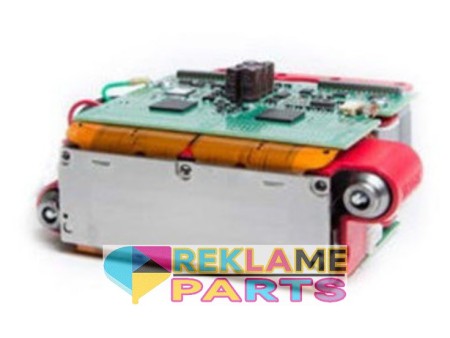

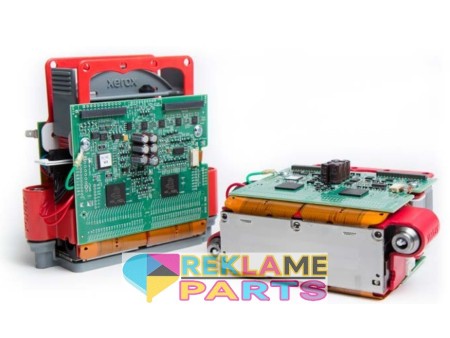

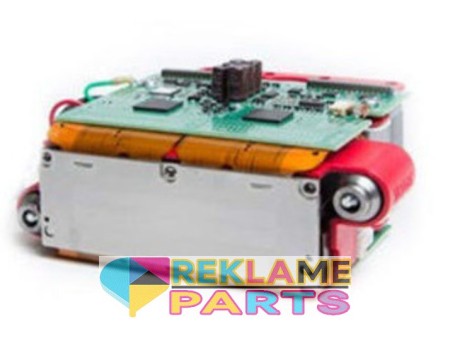

The 2-Color M-Series Downfire Mercury printhead enhances jetting performance across a wide array of materials used in industrial applications.
The MDF Printhead Assembly’s 880 jets are precisely aligned to one another during the manufacturing process. High nozzle-count systems require fewer printheads and simpler alignment mechanisms. The printhead can be operated at temperatures as high as 85°C. This further increases the latitude of jettable materials by allowing temperature to be used to adjust material viscosity to an appropriate level. With a maximum operating frequency of 43 kHz, the MDF Printhead Assembly provides superior throughput and performance.
Availability: In stock
Description: Brand New
SKU: 033K06460
Manufacturer part number: 033K06460
HTS Code: [EU] 84439990
Country of origin : United States
This printhead carries a manufacturer warranty.
Package：Original Manufacture Package
Specifications
☑️Number of addressable jets: 880
☑️Rows of nozzles: 16
☑️Nozzle spacing: 168.8 microns (150 npi)
☑️Drop size: 15-30 pl
☑️Normal drop velocity: 3.3 to 7.5 m/s
☑️Drop size variation, 1 sigma (with proper head calibration by customer): -2 percent
☑️Operating temperature: room to 85°C (185 F°)
☑️Fluid viscosity : 6 to 11 cP (higher/lower viscosities can be evaluated)
☑️Fluid surface tension : 25 to 40 dyne/cm
☑️Maximum operating frequency: 43 kHz
☑️Head filter : 25 microns absolute (removable filter)
☑️Wetted materials: 316L Stainless Steel Aluminum AL6061 E-coat Sylgard® 577 Trogamid® CX7323 Ultem® Plastic Kapton®
☑️Ejection cycles successfully testes (waveform dependant) : 1.5 trillion (or more) drops per jet
