Starfire SG1024 SA2C 10PL Print Head Printhead for Gongzheng Inkjet Printer

Starfire SG1024 SA2C 10PL Print Head Printhead for Gongzheng Inkjet Printer

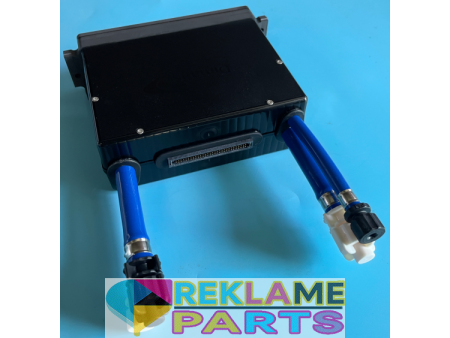

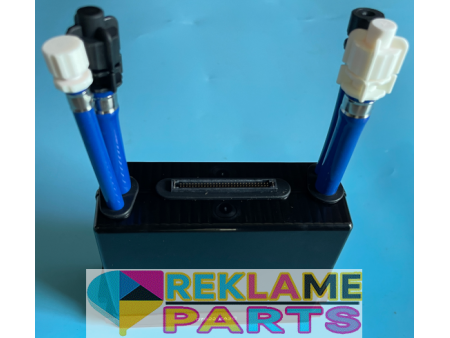

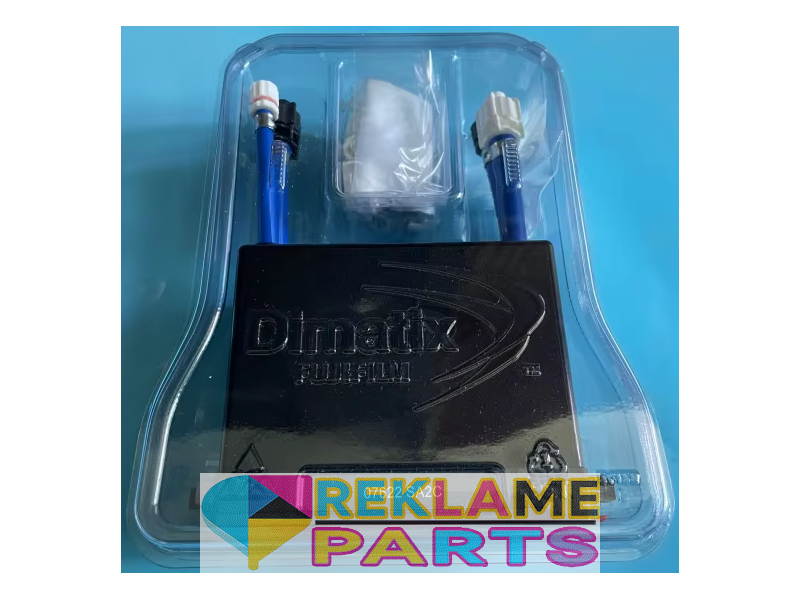

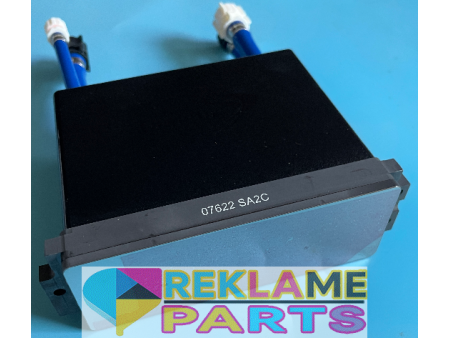

StarFire SG1024/SA-2C Printhead

SKU: PPHDI82087

Manufacturer part number: SG1024/SA-2C

Manufacturer: Dimatix

HTS Code: [EU] 84439990

This printhead carries a manufacturer warranty.

Country of origin : Japan

The StarFire™ SG1024/SA-2C is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink recirculation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations.

Each SG1024/SA-2C printhead has two separate ink paths each with 512 independent channels arranged in 4 rows in a single nozzle plate for resolutions up to 200 dpi. All 1024 nozzles can be fired. We recommend to change the head cables when installing a new printhead.

The Starfire SA-2C can be the replacement for Starfire SA2N which is discontinued.

Features

Two color operation

Robust and repairable construction

Drop size range: 12pl (50 Hz) - 33pl (18Hz)

1024 individually addressable jets

Incorporate VersaDrop™ binary and grayscale jetting

Continuous ink recirculation with RediJet™

Removable/replaceable collar mounted, coated metal nozzle plate

Compatibility :

Atexco Vega-3160

Dip-Tech NeraD 6m

Gongzheng  GZS3202

Gongzheng  StormJet GZM3202SG
