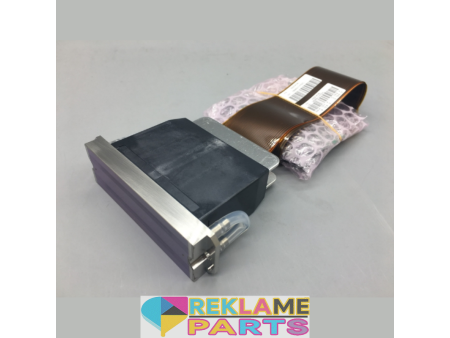

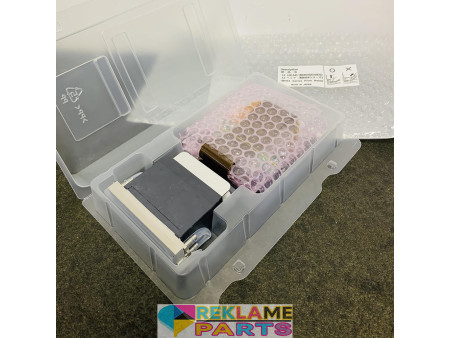

Original Ricoh GEN5 MH5420 UV Printhead (Cable: 500mm) N221414L and N221414R

Original Ricoh Gen5 MH5420 N221414L for Solvent/uv Ink 500mm Long Cable Print Head
Original Cabezal Ricoh Gen5 Print Head N221414L 2 Channels 500mm Cable for Solvent UV Ink Jet Printer
Original Ricoh GEN5 MH5420 UV Printhead (Cable: 500mm) N221414L and N221414R

This Ricoh GEN5 UV printhead with a total length of 500mm is suitable for a range of UV and solvent printers.
SKU: PPHRI18037
Manufacturer part number: N221414L
Manufacturer: Ricoh
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan

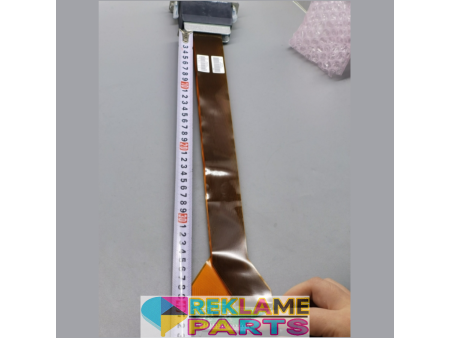

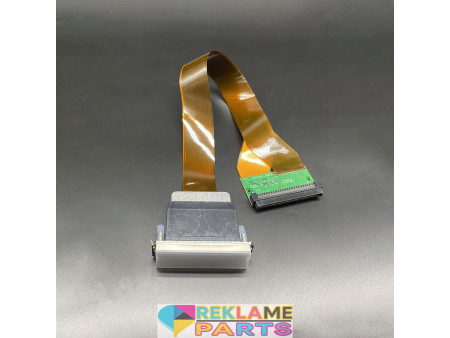

This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to two colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 500mm long in total (head body + cable + connectors). Head cable is 400mm long.

This head is also known as N221414R

Specifications

Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo type: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: UV Inks
Life: 100 billion actuations per nozzle
Max.number of color inks: 2 colors
Number of ink ports: 2 × dual ports


Compatibility:
Agfa Jeti Mira MG2716 S/HS
Agfa Jeti Mira MG2732 S/HS
Agfa Jeti Tauro H2500
Agfa Jeti Titan HS
Agfa Jeti Titan S
Agfa Tauro H3300

Akad NovaJet UV M6

CET Color Q5-1000
CET Color Q5-1000h
CET Color Q5-250
CET Color Q5-250h
CET Color Q5-500
CET Color Q5-500h

Docan 1212 UV
Docan FR3210
Docan FRT3116
Docan M10
Docan M6
Docan M8

EFI Pro 30F
EFI Pro 30F

Handtop HT1600UV HR4
Handtop HT1610UV FR4
Handtop HT2500UV HR8
Handtop HT2512UV-D FR8
Handtop HT3116UV FR8
Handtop HT3200UV HG12
Handtop HT3200UV HR8
