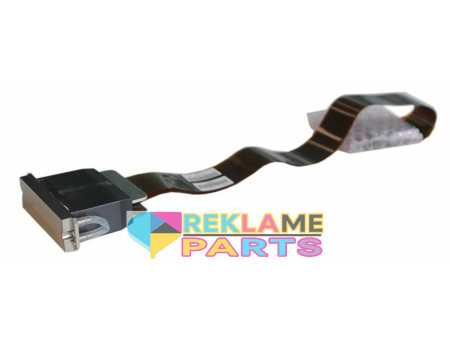

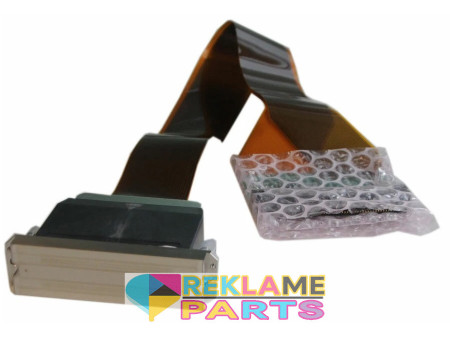

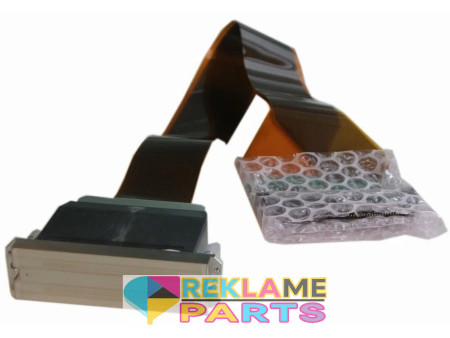

Ricoh GEN5 Water 7PL Printhead (Long Cable: 850mm) - MH5421

Ricoh Gen5 / 7PL Printhead, MH5421
Ricoh GEN5  Water 7PL Printhead (Long Cable: 850mm) - MH5421


This Ricoh GEN5 water printhead with a cable length of 450mm plus an extension of 300mm is suitable for a range of water-based printers.
SKU: PPHRI18043L
Manufacturer: Ricoh
This printhead carries a manufacturer warranty.
Country of origin : Japan


This Ricoh GEN5 water printhead with a cable length of 450mm plus an extension of 300mm is suitable for a range of water-based printers. It supports up to 2 colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead and it is covered by a manufacturer warranty.

This Ricoh GEN5 with the extension cable is 850mm long in total (head body + cable + extension cable). Head cable together with the extension is 750mm long (Contact us for Cable Extension)

Specifications

Dimensions: 89 x 25 x 69 mm (excluding cables)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 - 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: Water Inks
Life: 100 billion actuations per nozzle
