Original Xerox Drive Module (XDM) W-Series, HDMI

$895.00


This Drive Module (XDM) W-Series, HDMI is suitable for Xerox W-Series printheads. This is the original Xerox part (number 109K02911).

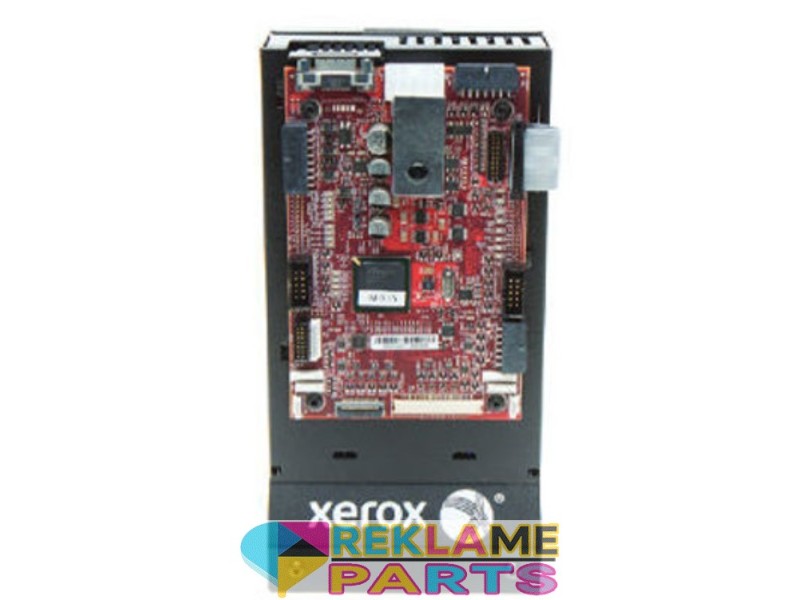

The XDM is a complete electronics drive system for Xerox® printheads. It features the waveform amplifier and the printhead interface board, and can control many other valves, solenoids or motors.

Quantity

Availability: In stock
Description: Brand New
SKU: 109K02911
Manufacturer part number: 109K02911
HTS Code: [EU] 85423190
Country of origin : Japan
This printhead carries a manufacturer warranty.
Package：Original Manufacture Package


Specifications
☑️ Compatible Heads : Xerox ® W-series
☑️ Thermal Control: with optional daughter board
☑️ Interface:  PCIe 1 lane over standard HDMI cables, 180MB/s transfer
☑️ Software: Custom Xerox® Driver and API, Microsoft Windows OS only
☑️ Page Timing Inputs: Quadrature encoder, dot clock and page start, RS422 differential or single ended
☑️ Motor Control: Drives two small stepper motors
☑️ Solenoid Control: Up to 4 solenoids, PWM drive voltage
☑️ Analog I/O: 2 inputs, 3 outputs, 0v-10v
☑️ Digital I/O: 6 general purpose 3.3v I/O signals
☑️ Power Supply Requirements:
    + 5v @ 1.2A
    +15v @ 1.2A
    -15v @ 400mA
    +50v @ 2.2A
    -50v @2.2A
