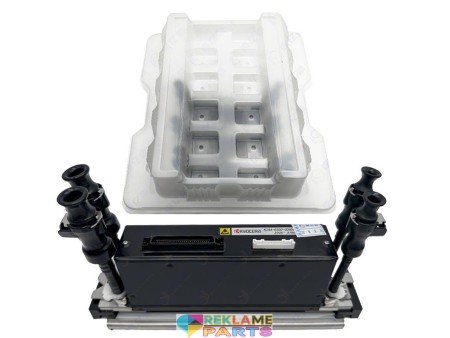

Kyocera KJ4B-0300-G06DS-MSS1 Printhead

Kyocera KJ4B-0300-G06DS-MSS1 Printhead


Specifications:
Model    Kyocera KJ4B-0300-G06DS-MSS1
Brand: Kyocera
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Ink Type    Aqueous (water-based)
Resolution    300 × 300 dpi
Print Width    112 mm
Nozzles    2,656
Drop Volume    5 picoliters
Drive Frequency    Maximum 30 kHz
Print Speed    Up to 120 m/min
Dimensions    200 × 36 × 68.5 mm
Weight    540 g (dry)
Recommended Ink Viscosity    5.0–6.0 mPa·s
Applications    High-speed single-pass printing (textiles, packaging, industrial graphics)
Origin: Japan
Condition: Brand new (original)


Features:
High-Speed Printing: Capable of 120 m/min, making it suitable for production-scale environments.
Precision: Small 5 pl drop size ensures sharp detail and smooth gradients.
Durability: Kyocera heads are known for long service life in continuous production.
Eco-Friendly: Works with aqueous inks, ideal for textile and packaging industries focused on sustainability.



Physical Characteristics:
Dimensions: 200 × 36 × 61.4 mm
Weight: ~540 g
Packaging Size: 20 × 10 × 10 cm
Gross Weight (packaged): ~2.0 kg


Usage & Compatibility:
Textile Printing: Fast, reliable for fabrics requiring water-based inks.
Packaging: High-speed single-pass printing for cartons or labels.
Industrial Graphics: Where throughput and durability matter more than ultra-fine resolution.
