Original Dimatix Spectra Starfire SG1024 XSA 1 Color 7PL Print Head for Kerajet Keratex Mega

Original Dimatix Spectra Starfire SG1024 XSA 1 Color 7PL Print Head for Kerajet Keratex Mega

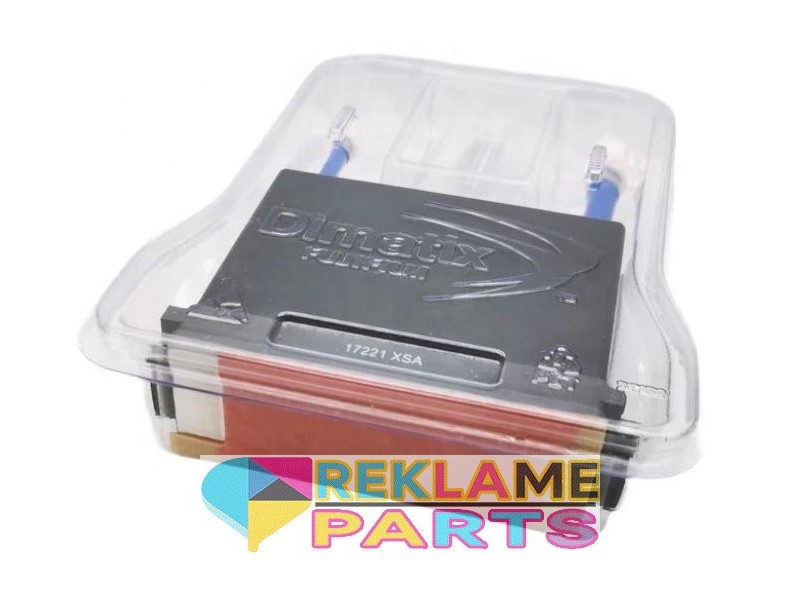

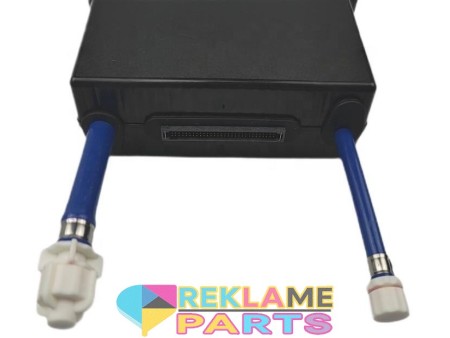

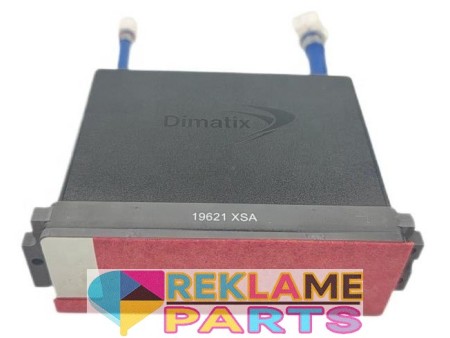

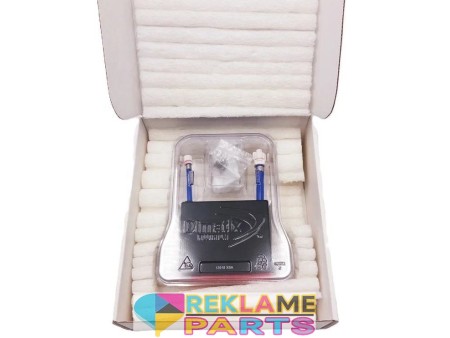

Genuine Spectra Dimatix Starfire™ SG1024/XSA Printhead 1 Color 7Pl Printhead

Warranty : This printhead carries a manufacturer warranty.

Country of origin : Japan

SKU: PPHDI87897

Manufacturer part number: PPHDI87897

Manufacturer: Dimatix

HTS Code: [EU] 84439990

The SG1024/XSA printhead has 1024 independent channels arranged in 8 rows in a single nozzle plate for resolutions up to 400 dpi.

The StarFire SG1024/XSA is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink re-circulation and single color operation at 400 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations. We recommend to change the head cables when installing a new printhead.

Features:

Number of jets per module: 1024

Print Width: 64.96 mm [2.55 in.]

Native resolution: 400 dpi

Native Drop Size: 6 pl

Largest Drop Size: 20 pl

Versadrop max productivity: 300 ng-kHz with drop sizes between 6 and 20 ng

Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets.

Operating Temperature: up to 50°C (122° F)

Nozzle Spacing: 0.0635 mm [0.0025 in.]

Nominal fluid viscosity: 8-20 cP (10-14 cP recommended)

Nozzle plate technology: metal

Printhead heat type: Integrated heater, thermal transfer

Integral temperature sensor: integrated

Compatibility  :

Kerajet Keratex Mega
