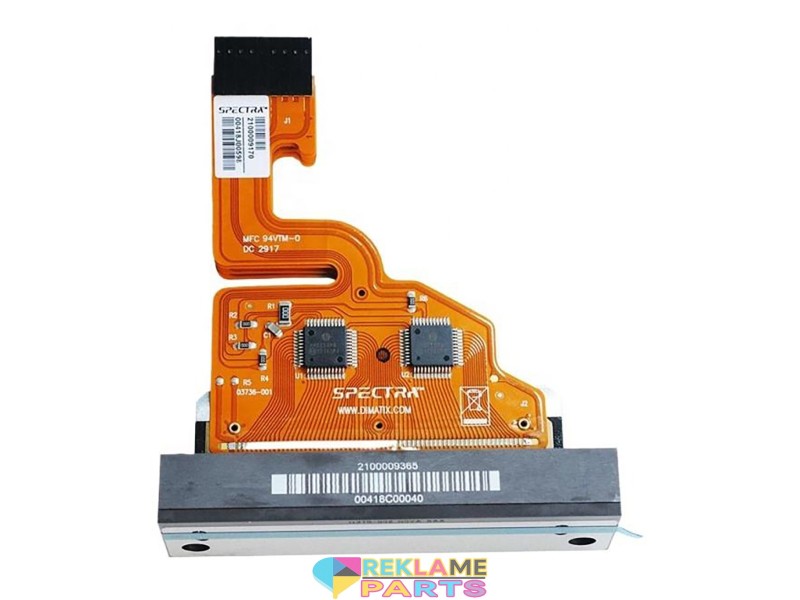

FujiFilm Dimatix Nova PH256/80AAA for DGI PolaJet PS-1804

FujiFilm Dimatix Nova PH256/80AAA
Original Spectra Nova PH 256/80 80pl Printhead


The Spectra Nova PH256/80AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi.
SKU: PPHSPNO80
Manufacturer: Dimatix
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : USA


The Spectra Nova PH256/80AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 450 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a 0.011 inch distance between nozzles. The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually. It corresponds to PN 09170.

These Spectra heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.

This is the original Vutek print head (number AA90268 and AA90513).


Specifications
- Technology: Piezo Electric
- Max. Resolution: 450 dpi
- Cal. Droplet Size: 80 pico litre
- Adj. Range for Droplet Size: 70-85 pico litre
- Tot. Amount of Nozzles: 256
- Nozzle Spacing: 279 microns
- Nozzle Diameter: 52 microns
- Firing Frequency: 20 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Solvent, water-based and UV Inks


Compatibility:

Agfa: Anapurna 100, L, XL

DGI: PolaJet PS-1804, PS-2504, PS-3204, PS-3204D, PS-3206D

Dilli: Neo Plus UVP-1606, UVP-1606W, UVP-2506, UVP-2506W

EFI Vutek: UltraVu 150, UltraVu II 5330

Eurotech: Eagle S6, S6², S8, S8², Malakan, Mermaid, Pars

Kornit: 931DS, Avalanche, Avalanche DC Pro, Storm II, Thunder 932

Markem-Imaje: 5800

Mutoh: Cobra S100UV, Cobra S65UV, Osprey 102, Osprey 130, Osprey 75, PJ-1624NX (Toucan 64 4c), PJ-1626FE (Toucan Hybrid), PJ-1626NX (Toucan 64 6c), PJ-2216NX (Toucan 87)

Teckwin: TeckPro 320, Teckpro H3200, Teckpro H5000, Teckpro S3200
