Dimatuix Spectra SM-128 50PL Printhead for Agfa Jeti 3150 X-2 UV Flatbed

FujiFilm Dimatix S-class SM 128 AA

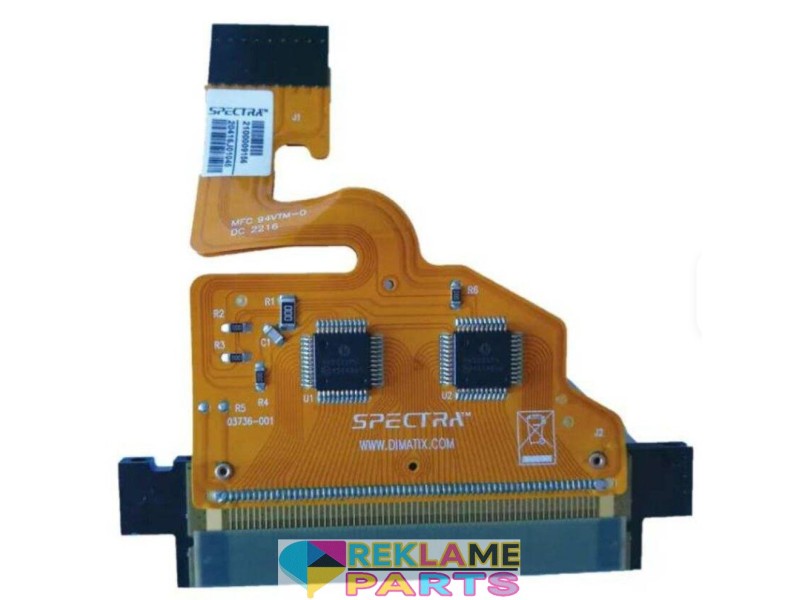

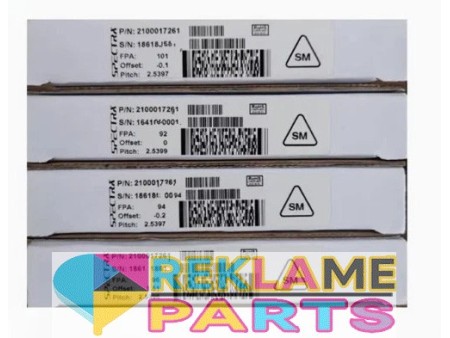

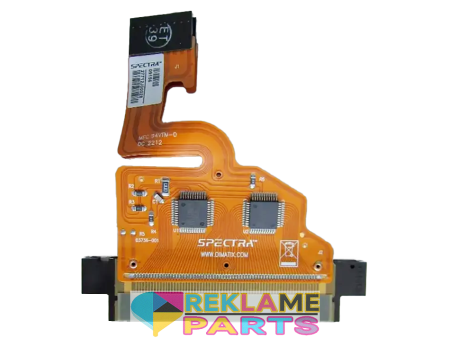

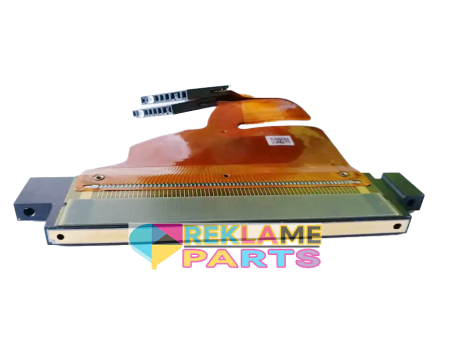

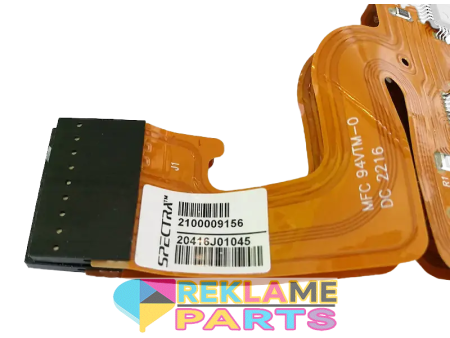

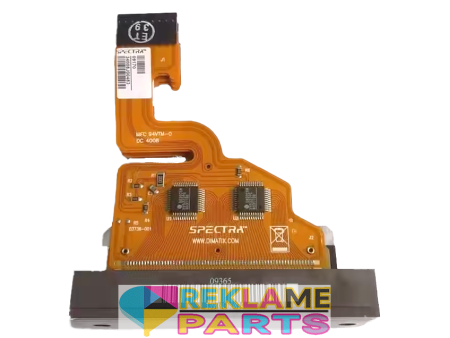

Dimatuix Spectra SM-128 50PL Printhead

The Spectra SM-128 AA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 600 dpi.
SKU: PPHSPSM128
Manufacturer part number: 17261
Manufacturer: Dimatix
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : USA


The Spectra SM-128 AA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 600 dpi. Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 nozzles. It has been calibrated for a droplet size of 50 pico litre and has a maximum firing frequency of 20 kHz.
This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or individually.
These Spectra SM-128 AA heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability. It carries a manufacturer product warranty.


Specifications
- Technology: Piezo Electric
- Max. Resolution: 600 dpi
- Cal. Droplet Size: 50 pico litre
- Adj. Range for Droplet Size: 40-55 pico litre
- Tot. Amount of Nozzles: 128
- Nozzle Spacing: 508 microns
- Nozzle Diameter: 50 microns
- Firing Frequency: 20 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Solvent and UV Inks


Note:
Gandinnovations / AGFA: Jeti printers use SE-128, SL-128 or SM-128 print heads depending on the original printer configuration.


Compatibility:

Agfa Jeti 1224 UV HDC FTR
Agfa Jeti 3312 Solvent RTR
Agfa Jeti 3324 Solvent RTR

Durst Rho 160R
Durst Rho 205/16
Durst Rho 600 Basic
Durst Rho 700 HS

Infiniti Challenger FY-3360AS

Neolt SuperJet-M 2050

Spühl Virtu RS 25/48

Zünd UVjet 250-Combi

Agfa Jeti 2030 X-2 UV Flatbed
Agfa Jeti 3318 Solvent RTR
Agfa Jeti 3348 UV Galaxy RTR

Durst Rho 161 TS
Durst Rho 205/8
Durst Rho 600 Pictor
Durst Rho 800 Presto

Neolt SuperJet-M 2500

Spühl Virtu RS 35/48

Agfa Jeti 3150 X-2 UV Flatbed
Agfa Jeti 3324 AquaJet RTR
Agfa Jeti 5048 UV XL JetSpeed

Durst Rho 162 TS
Durst Rho 315R
Durst Rho 600 Rapid

Neolt SuperJet-M 3200
