Ricoh Pro L5160 Printhead
zoom_in
  • On sale!
  • Ricoh Pro L5160 Printhead
  • Ricoh Pro L5160 Printhead
  • Ricoh Pro L5160 Printhead

Ricoh L5160 Printhead

$1,295.00

Ricoh L5160 Printhead

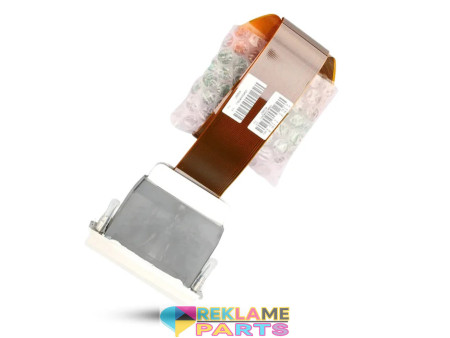

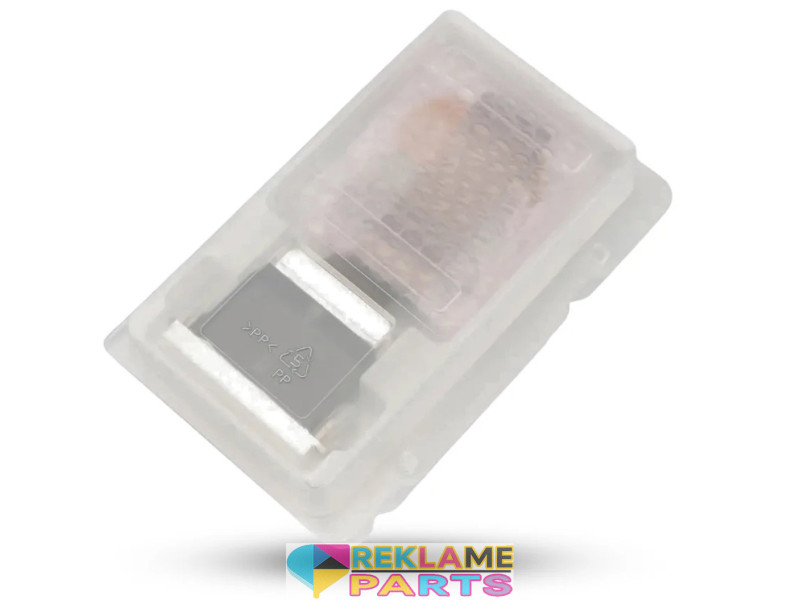

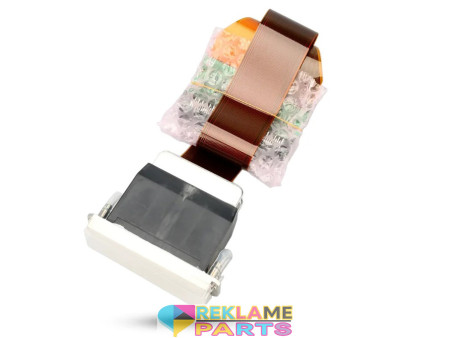

This Ricoh GEN5 printhead is suitable for Ricoh L5160 printers.
SKU: PPHRI18121
Manufacturer part number: L5160
Manufacturer: Ricoh
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan

Quantity

Ricoh L5160 Printhead

This Ricoh GEN5 printhead is suitable for Ricoh L5160 printers.
SKU: PPHRI18121
Manufacturer part number: L5160
Manufacturer: Ricoh
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan


This printhead is suitable for Ricoh L5160 based printers. This is the original Ricoh part.

Technical Specifications

Size: 89(W) × 69(D) × 24.51(H) mm (3.5" × 2.7" × 1.0") excluding cables & connectors
Number of Nozzles: 1,280
Nozzle spacing (Within a row): 0,1693 mm/row
Nozzle spacing (Row to row distance): 0.55 mm
Method: Piston pusher with metallic diaphragm plate
Drop volume: Binary mode : 7pl / Grey-scale mode : 7-35pl *depending on the ink
Jetting Frequency: Binary mode : 30kHz / Grey-scale mode : 20kHz
Compatible ink: Latex


Compatibility
Ricoh Pro L5130
Ricoh Pro L5160

L5160
