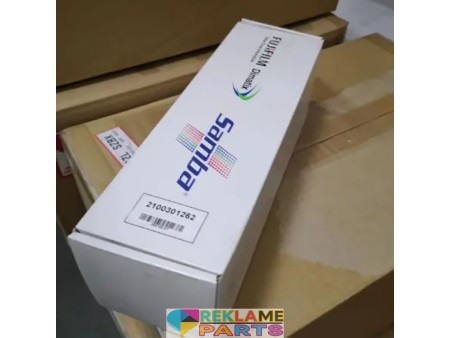

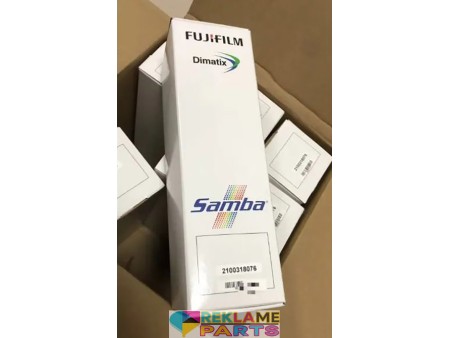

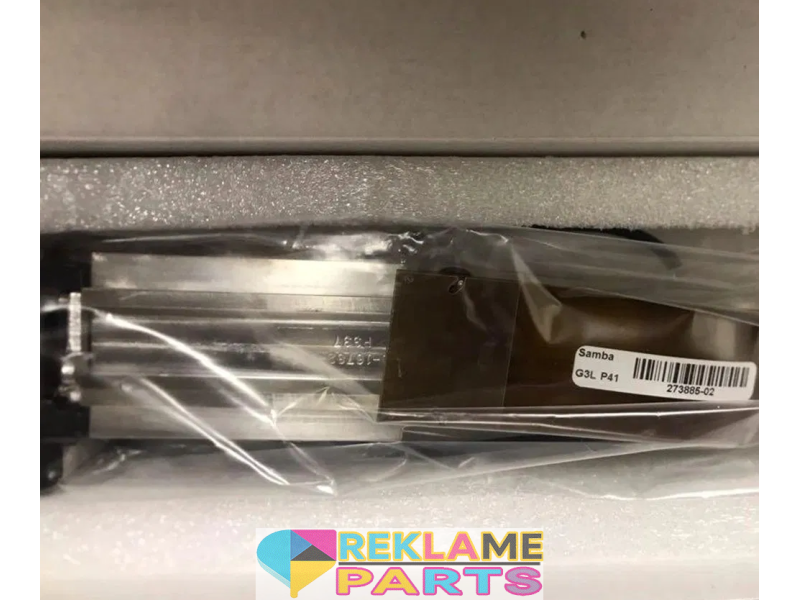

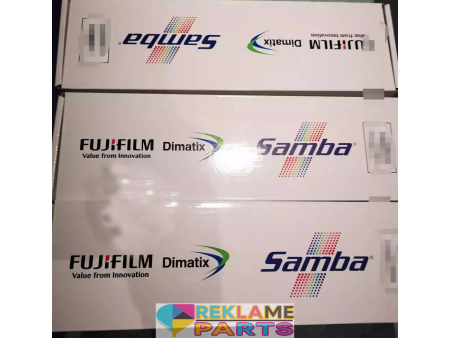

Brand New Dimatix Samba G3L Printhead

Brand New Dimatix Samba G3L Printhead


Up to 10 Years of Design Lifespan
The Samba G3L printhead technology delivers the speed, versatility and reliability required for a wide range of demanding graphics and specialty applications.

SKU: 2100318076
Manufacturer: Dimatix
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan


The Samba G3L printhead technology delivers the breakthrough quality, speed, and scalability required for variable width, single-pass production inkjet printing, and materials deposition applications. Based on state-of-the-art silicon micro-electro-mechanical systems manufacturing (Si-MEMS), the Samba G3L printhead is the most advanced technology available today.

With 2048 individually addressable nozzles, the Samba G3L printhead has 1,200 dpi native resolution (600 dpi in redundant mode) and a native ink drop size of 2.4 picoliters (pl) delivering outstanding print quality that can jet a wide range of fluids including UV curable and aqueous inks.


Specifications

Number of addressable Jets per module: 2048
Print width: 43mm (1.7 in.) per printhead, stitch for the infinite print width
Native resolution: 1200 dpi/600 dpi in redundant mode
Native drop size/largest drop size: 2.4pl to 13.2pl
Firing frequency: Up to 100Khz
Nominal fluid viscosity: 2 to 10 cPs (3 to 7 cPs recommended)
Compatible jetting fluids: UV-curable, organic solvents, aqueous, latex
Nozzle Plate technology: Silicon MEMS/ Non-wetting coating
Printhead heat type: Fluids thermal transfer.
