Original Ricoh Gen6 MH5340 print head for UV printer J376-04 For SG6 2030

Original Ricoh Gen6 MH5340 print head for UV printer J376-04

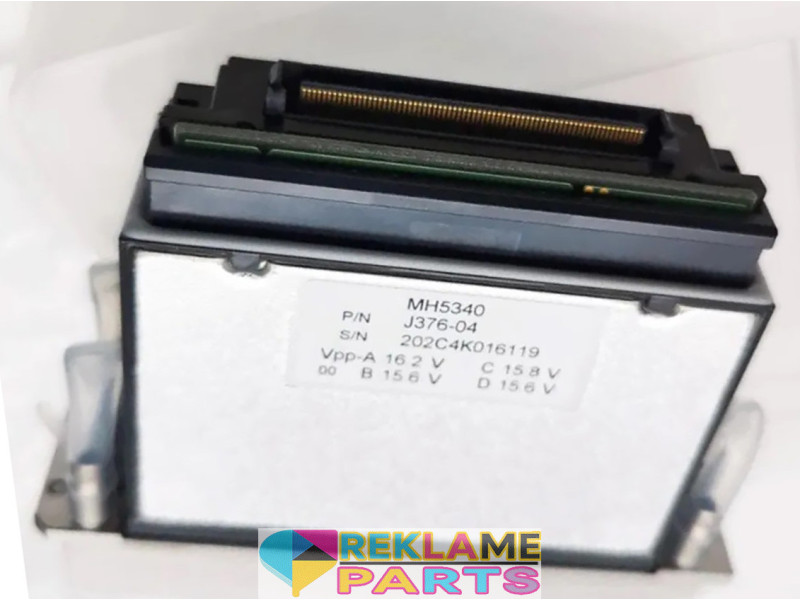

Ricoh GEN6 Printhead MH5340 (Cable: 447mm)

This Ricoh MH5340 printhead with a cable length of 447mm is suitable for a range of UV printers.
SKU: PPHRI18052
Manufacturer part number: J352-04
Manufacturer: Ricoh
This printhead carries a manufacturer warranty.
Country of origin : Japan
We recommend to change the head cables when installing a new printhead.

This Ricoh GEN6 head (MH5340 series) is compatible with UV based inks. The service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it. This is the 4 colour head. The 2 colour head is MH5320.

A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.

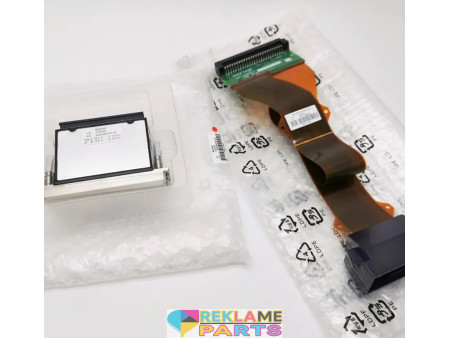

This prinhead is available with a cable (including connector) of either 145mm or 447mm. This printhead has a cable of 447mm and a total length including the printhead of 500mm.

This printhead is made of the two skus: J376-03 (head) and J352-04 (cable 445mm).

Specifications

Method: Piston pusher with metallic diaphragm plate
Print Width: 54.1 mm (2.1")
Dimensions: 89(W)  x 66.3 (D) x 24.51 mm (H)
Weight: 228g (including 45C cable)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle spacing (Row to row distance): A: 1.101mm B: 11.8411 mm
Compatible ink (UV, Solvent, Asueous, Others.
Nozzle density: up to 600 npi
Max.number of color inks: 4 colors
Temperature control: Integrated Heater and Thermistor
Operator temperature range: 60° C
Drop volume: Binary mode : 5pl / Grey-scale mode : 5-15pl
Jetting frequency: 50kHz (3 levels); 40kHz (4 levels)
Grey-scale: 4 levels
Viscosity ranfe: 10~12mPa・s
Surface tension: 28~35mN/m
Ink Port: Yes


Compatibility:
Hollanders Colorbooster 320

M5000

MC2512RV

PrintJet HYB2000

SG6 2030
