Original Epson S3200-A3 Printhead use for Flora X3

Original Epson S3200-A3 Printhead use for Flora X3


Epson S3200-A3 printhead provides high productivity, high image quality and head expandability. With maximum 4.73 inch-wide MEMs, this head series is equipped with ink circulation mechanism. It is suitable for Aqueous ink. We recommend to change the head cables when installing a new printhead.

- Epson's unique Variable Sized Droplet Technology (VSDT) delivers smooth gradation by freely control to eject the droplet volume.

- The wide printing width of 120.2 mm (4.73 inches) is excellent for high production. Minimum-pass printing is possible because there is very little variation between nozzles.

- Highly scalable S-shape design can realize space-saving for increasing productivity and multi-colours. Contributes to miniaturize the printer.

- A high-precision positioning hole allow the user to replace the head quickly and efficiently without further adjustments.

- PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.

MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi /2 rows of nozzles). It ontributes to compact, high speed, high quality, and high image quality. The precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.


SKU: S3200-A3
Manufacturer part number: S3200-A3
Manufacturer: EPSON
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin : Japan



Specifications:
Ink Type : Aqueous.
Type : PrecisionCore micro TFP printhead
Weight : 235 g

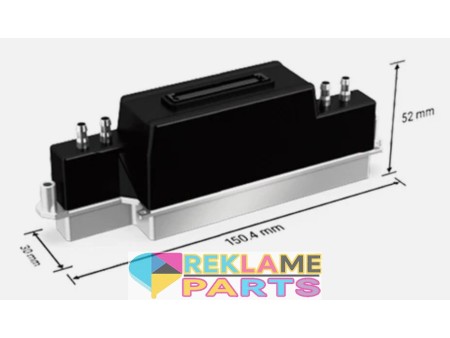

Width x Depth x Height: 150.4 × 30.0 × 52.0 mm
Number of nozzle : 3200 (Net: 2840)
Nozzle pitch/ nozzle row : 1/300 inch
Nozzle rows: 2 rows
Nozzle Resolution : 600npi (300npi x 2 rows)
Effective print width : 120.2 mm (4.73 inches)
Maximum usable ink color: 2 colours
Droplet ejection performance : Viscosity range: 5.0-7.0 mPa.

    Binary : 9 pl at 48kH
    4 levels greyscale : 5.8, 9.8, 18.0 pl at 24 kHz

Ink recirculation: Common channel recirculation
Positioning mechanism: Reference hole


Printer compatibility:

✅ Flora X3
