Ricoh MH5441 Gen5 Printhead for ATP Color DFP1320

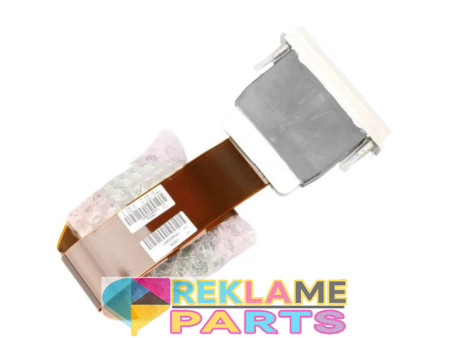

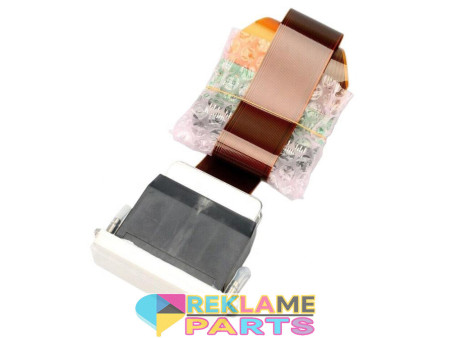

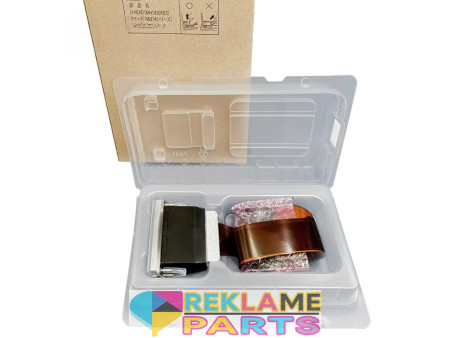

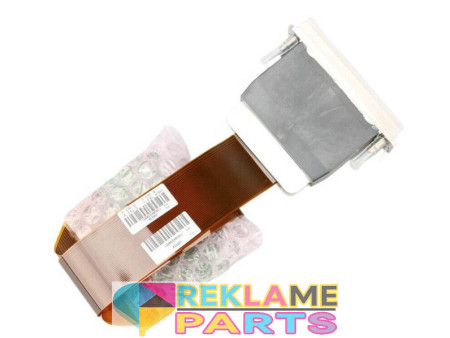

Ricoh MH5441 Gen5 Printhead

Description :

This Ricoh GEN5 water printhead with a total length of 500mm is suitable for a range of water-based printers. It supports up to 2
colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial
inkjet printers.

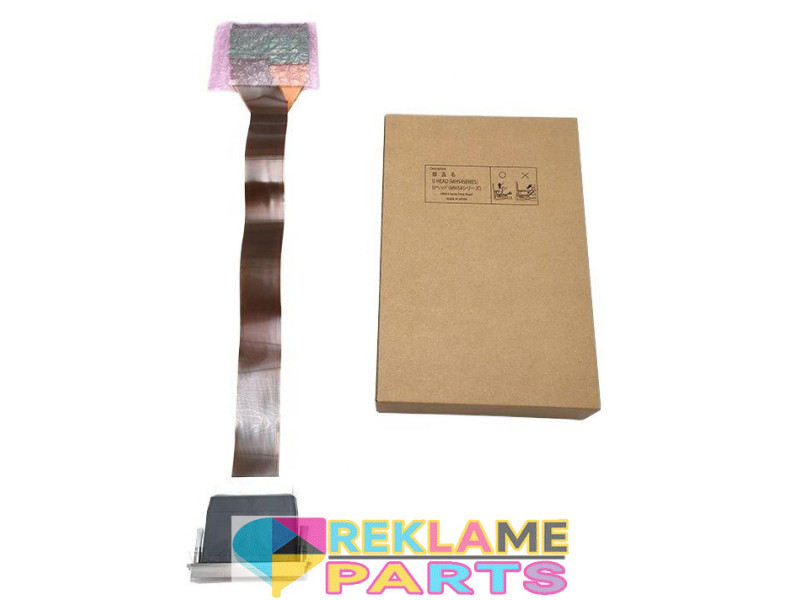

This Ricoh GEN5 is 500mm long in total (head body + cable + connectors). Head cable is 400mm long.
This printhead comes with the hose barbs which can easily be removed if needed.
Specifications :

 * Dimensions: 89 x 25 x 69 mm (excluding cables)
 * Head materials: SST, Nickel alloy and Epoxy Adhesive
 * Nozzle plate surface: Coated SST
 * Number of nozzles: 4 x 320 nozzles
 * Nozzle spacing: 0.1693 mm
 * Nozzle density: up to 600 npi
 * Piezo yype: D33 Stacked PZT
 * Temperature control: Integrated Heater and Thermistor
 * Operator temperature range: Up to 80° C
 * Native drop volume: 7 pl
 * Drop volume range: 7 - 35 pl
 * Drop velocity: 7 m/s
 * Jetting frequency: Up to 60 kHZ
 * Ink compatibility: Water Inks
 * Life: 100 billion actuations per nozzle

Printer compatibility :

ATP Color DFP1320
ATP Color DPP740 G5
DIP J4
Hollanders ColorBooster 230
Hollanders ColorBooster 250
MTEX Turbo Sub
tek-Ind alfa digital SD100x100-R5
tek-Ind alfa digital SD80x100-R5



Attention :

1. The printhead is required to be installed by professional persons.

2. Due to the nature of printer parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don t accept any return and refund once the printhead is installed on the machine.
