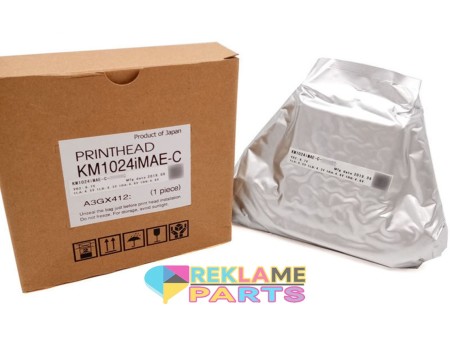

Original Konica KM1024i MAE-C Water Based 14pL Printhead for Agfa Avinci CX3200

Original Konica KM1024i MAE-C Water Based 14pL Printhead


The Konica Minolta KM1024i MAE-C printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i MAE-C printhead offers a Maximum Drive Frequency of 27kHz, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.



Specifications:

• SKU: PPHKO82494
• HTS Code: [EU] 84439990
• Manufacturer part number: KM1024IMAE-C
• Manufacturer: Konica Minolta
• This printhead carries a manufacturer warranty.
• Country of origin : Japan
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 14 pico litre
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Firing Frequency: 27 kHz
• Ink Compatibility: Water Based Inks
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

We recommend to change the head cables when installing a new printhead.



Compatibility:

☑️ Agfa Avinci CX3200
☑️ Human Digital Technology QP-Jet
☑️ Konica Nassenger Pro 120
