Kyocera KJ4A-AL / KJ4A-AL Inkjet Printhead

Kyocera KJ4A-AL / KJ4A-AL Inkjet Printhead

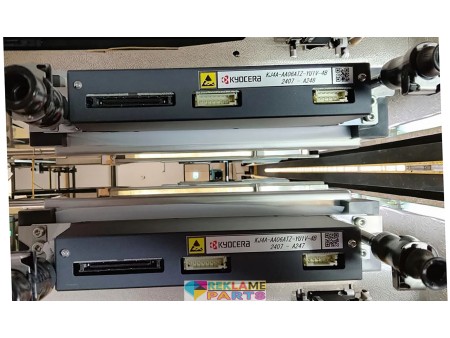

Kyocera KJ4A-AA06ATZ-DL1V-4A print head


The Kyocera KJ4A-AL / KJ4A-AL is designed for UV-curable inks or other high viscosity inks. It is optimal for Label/Packaging, Sign Graphics, Offset Surprint and others.
SKU: PPHKY87212
Manufacturer part number: KJ4A-AA
Manufacturer: Kyocera
HTS Code: [EU] 84439990
This printhead carries a manufacturer warranty.
Country of origin: Japan

The Kyocera KJ4A-AL / KJ4A-AL is designed for UV-curable inks or other high viscosity inks. It is optimal for Label/Packaging, Sign Graphics, Offset Surprint and others. It is a 600dpi one colour printhead with a maximum drive frequency of 20kHz. It delivers high quality with a small drop volume of 3pl at 50 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe.

The Kyocera KJ4A-AL / KJ4A-AL  is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply. We recommend to change the head cables when installing a new printhead. The Kyocera KJ4A-AL / KJ4A-AL is replacing the Kyocera KJ4A-AA.


Specifications:
Ink Type:  UV Ink
Dimensions: 200 × 25 × 57.9mm
Dry Weight: 420g
Total Nozzles: 2.656
Standard Resolution: 600 x 600 dpi
Print Width: 108.25mm
Max. Drive Frequency: 20kHz
Drop Volume: 3, 6, and 13pl
Max. Sprint Speed: 50m/min
Optimum Ink viscosity: 6.0 - 7.0 mPa*s


Compatibility:
Dilli Neo Sun FB2513-04 D-WX
Dilli NEO SUN HB 2504D-W2XL
NEO SUN HB 2504 D-DXL
Xeikon Panther 3300
