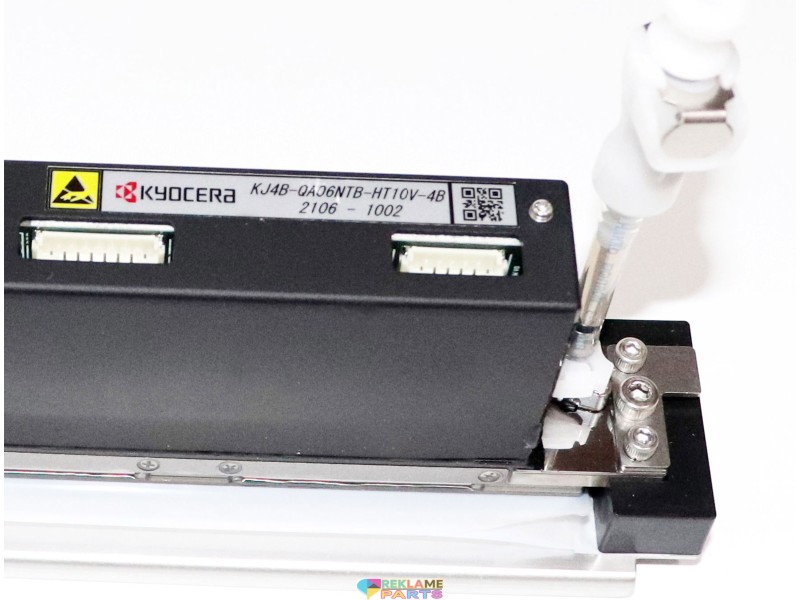

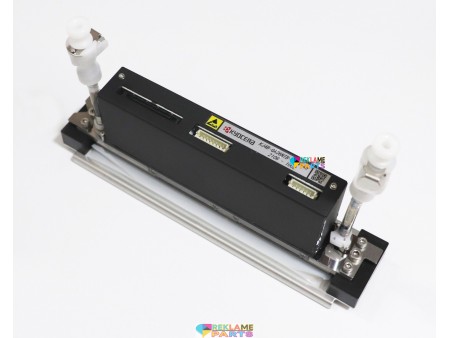

Kyocera KJ4B-QA06NTB-HT10V-4B Print Head

Kyocera KJ4B-QA06NTB-HT10V-4B Print Head

The Kyocera KJ4B-QA06NTB-HT10V-4B is a high-speed industrial inkjet printhead optimized for water-based inks, delivering 600 dpi resolution, a maximum drive frequency of 30 kHz, and designed for continuous, precision printing in commercial and packaging applications.


Specifications :
Model    Kyocera KJ4B-QA06NTB-HT10V-4B
Ink Type    Water-based (Aqueous)
Resolution    600 dpi
Maximum Drive Frequency    30 kHz
Drop Volume    ~5 picoliters (pL)
Print Speed    Up to 75 m/min
Nozzles    2,656
Effective Print Width    108.25 mm
Nozzle Pitch    0.042 mm
Dimensions    200 × 25 × 59.3 mm
Weight    420 g
Recommended Ink Viscosity    Adjustable with built-in heater (approx. 3–5 mPa·s)
Country of Origin    Japan
Applications    High-speed commercial printing, packaging, and industrial
High-Speed Operation: Supports up to 30,000 drops per second for continuous production.
Precision Printing: 600 dpi resolution ensures sharp text and detailed graphics.
Compact & Lightweight: At 420 g, it integrates easily into industrial printers.
Heated Ink Control: The HT10V variant includes heater support to maintain optimal ink viscosity, improving stability in high-speed runs.

Usage & Compatibility:
Commercial Printing: Books, newspapers, and transactional documents.
Packaging: High-speed printing on coated/uncoated substrates.
Industrial Integration: Used in continuous-feed printers and high-volume production systems.
