KORNIT DIGITAL cobetter ExtraButor EX-DMB-8NC
ExtraButor Degas Module - EX-DMB-8NC

This degassing module is a hollow fiber membrane contactor designed for efficient removal of dissolved gases from ink jet inks on-board ink jet printing systems.
SKU: EX-DMB-8NC
Manufacturer part number: EX-DMB-8NC

Quantity

KORNIT DIGITAL cobetter ExtraButor EX-DMB-8NC
ExtraButor Degas Module - EX-DMB-8NC

This degassing module is a hollow fiber membrane contactor designed for efficient removal of dissolved gases from ink jet inks on-board ink jet printing systems.
SKU: EX-DMB-8NC
Manufacturer part number: EX-DMB-8NC


The ExtraButor Degas Module is an alternative to UltiFuzor™ 41110 series degas module. It allows digital ink jet printers to achieve high DO (Dissolved Oxygen) removal at the lowest pressure drop, prevent bubble formation and assure optimal printer performance.

The larger design allows digital ink jet printers to meet flow rate requirements up to  300mL/min. This degas module is ideal for digital textile printing applications

Features and Benefits
    Compact size
    Lower pressure drop
    High dissolved oxygen removal
    Unique hollow fiber technology
    Black housing for UV inks


Specifications
    Flow guidelines : 30 – 300mL/min
    Maximum operating temperature : 45 °C / 113 °F
    Maximum operating pressure : 0.2 MPaG @ 45 °C / 30 psig @ 113 °F
    Connections (Inlet/Outlet/vacuum) : 1/8” NPT, Female

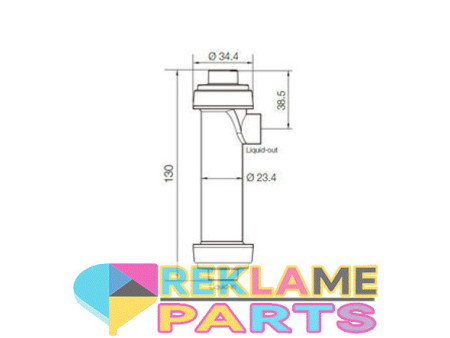

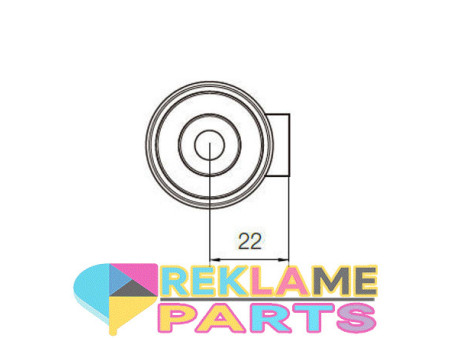

    Dimensions (mm) : 130 (H1); 38.5 (H2); 22 (H3); 23.4 (Ø1); 34.4 (Ø2)
    Housing material: PP
    Hollow fiber membrane material: PMP
